Ruthmann T700 HF
Hires › Vehicle Mounted Platforms › Ruthmann T700 HF

Ruthmann T700 HF

Ruthmann T700 HF

Specification

Make
Make
Ruthmann
Model
Model
T700 HF
Working Height
Working Height
70m / 229ft 8in
Platform Height
Platform Height
68m / 223ft 2in
Maximum Outreach
Maximum Outreach
41m / 134ft 7in
Min Weight
Min Weight
32,000.00kg / 70,720lbs
Safe Working Load
Safe Working Load
600.00kg / 1,326lbs
Machine Length
Machine Length
11.99m / 39ft 5in
Machine Height
Machine Height
3.99m / 13ft 2in
Power Options
Power Options
Diesel
Cage Rotation
Cage Rotation
440 degrees

Interested in hiring a Ruthmann T700 HF?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Overview Key Features Accessories Ideal Applications Resources

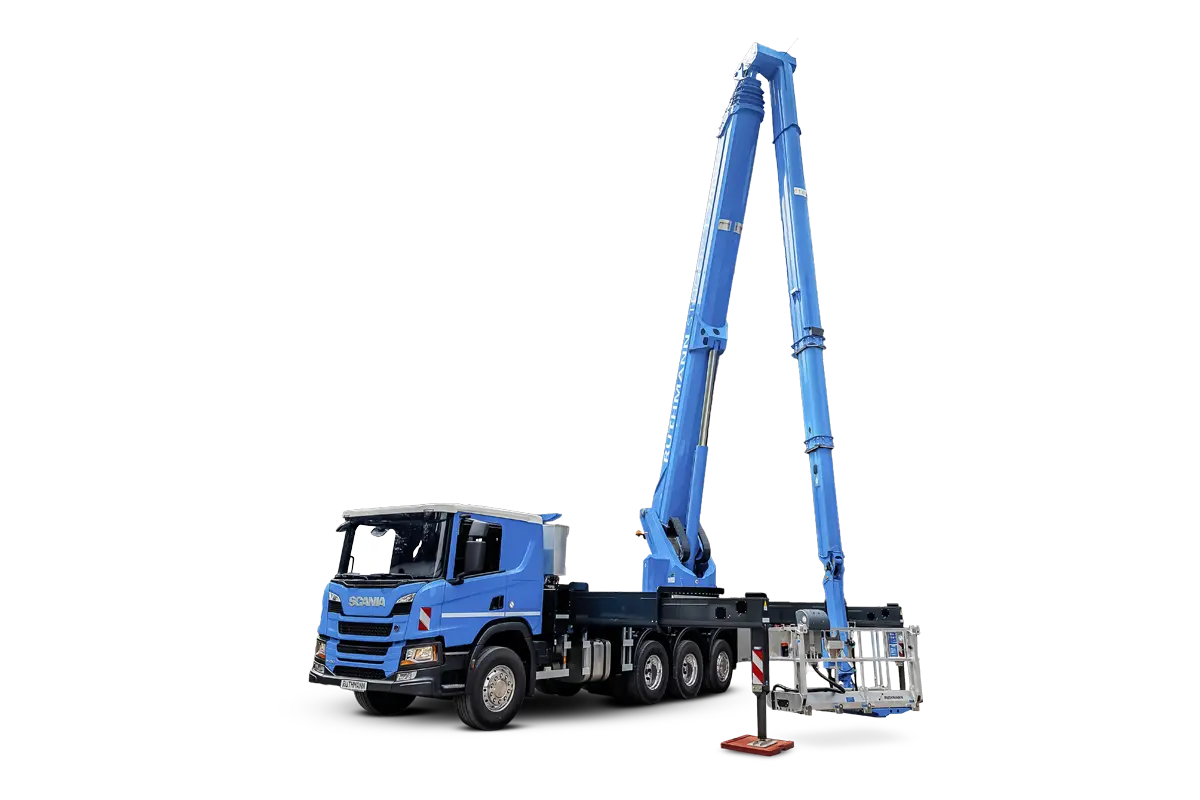

Ruthmann T700 HF Vehicle Mounted Platform

The Ruthmann STEIGER® T700 HF is a truck mounted platform that offers a working height of 70m and an outstanding outreach of 41m on a carrier chassis less than 12m long, ideal for working in confined working spaces or where direct access is limited. Due to the 1.7m higher articulation point and the 24.6m long upper boom, operations can be carried out in narrow house canyons, e.g. at the rear of buildings which were previously very difficult to achieve in this height class.

Key Features of the Ruthmann T700 HF

  • 70m working height
  • 41m outreach
  • 11.99m total vehicle length
  • Top performance data due to multi-bevelled boom technology
  • Highflex jib (RÜSSEL®) – 220° swivelling range
  • Highflex work basket – 440° rotation angle
  • ‘Standing’ working basket perfect for ‘under and up’ as well as all possibilities of ‘up and over and back’ during lowered RÜSSEL®
  • Maximum platform load capacity of 600kg
  • Negative reach/Working below ground possibilities
  • Automatic set-up/retraction mechanism at the push of a button
  • 2.42m x 0.97m platform dimensions that can be extended to 3.82m long
  • Maintenance-friendly boom system

Recommended training course for this platform: IPAF Category: Static Boom (1b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.



Looking for something else?

Discover our entire range of Vehicle Mounted Platforms here.

  • General building maintenance
  • Film/TV work
  • Window cleaning
  • Construction
  • Industries and factories
  • Airports
  • Railways
  • Ventilation systems
  • Electrical systems
  • Advertising signs
  • Guttering
  • Painting
  • Lighting
  • Industrial Maintenance
  • Assembly
  • Ports
  • Pruning
  • Industrial cleaning
  • Restorations
  • Tree Care
  • Facade Cleaning
  • Arborist
  • CCTV/Security
  • Councils
  • Energy
  • Facilities Maintenance
  • Highways
  • Roofing
  • Telecommunication
  • Utilities

The Ruthmann T700 HF can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Harness

Harness
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead
Outrigger Pads

Outrigger Pads

The Ruthmann T700 HF comes equipped with various features designed to enhance your efficiency and performance on the job.

Diesel Powered

Diesel Powered
Self-Levelling Jacks

Self-Levelling Jacks
Stage V Engine

Stage V Engine
Power to Platform

Power to Platform
Large Basket

Large Basket
Extra Capacity

Extra Capacity

Interested in hiring a Ruthmann T700 HF?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
