Sinoboom AB15ERJN
Hires › Cherry Pickers / Boom Lifts › Sinoboom AB15ERJN

Sinoboom AB15ERJN

Sinoboom AB15ERJN

Specification

Make
Make
Sinoboom
Model
Model
AB15ERJN
Working Height
Working Height
16.8m / 55ft 2in
Platform Height
Platform Height
14.8m / 48ft 7in
Maximum Outreach
Maximum Outreach
7m / 23ft
Min Weight
Min Weight
8,500.00kg / 18,785lbs
Safe Working Load
Safe Working Load
230.00kg / 508lbs

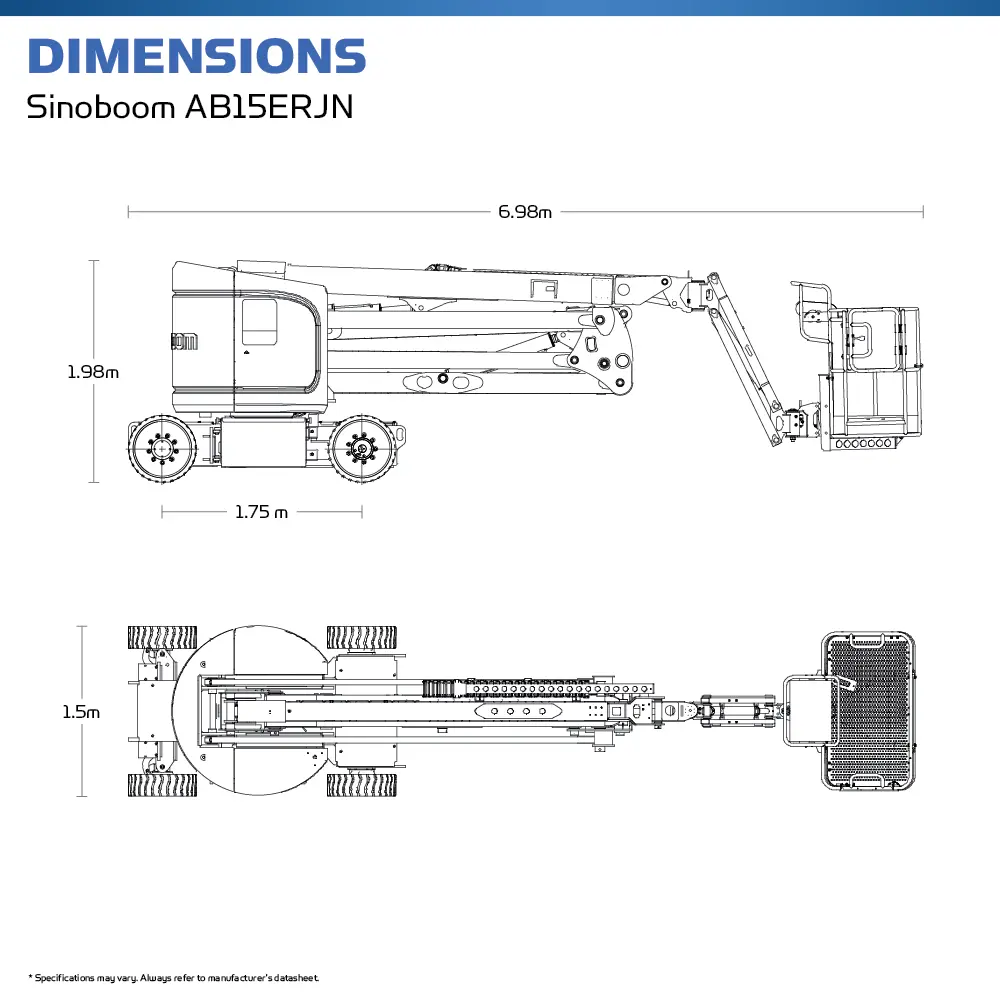

Machine Length
Machine Length
6.98m / 22ft 11in
Machine Width
Machine Width
1.5m / 5ft
Machine Height
Machine Height
1.98m / 6ft 6in
Power Options
Power Options
Electric/Battery
Turning Radius
Turning Radius
3m / 9ft 11in
Gradeability
Gradeability
25%
Cage Rotation
Cage Rotation
180 degrees

Interested in hiring a Sinoboom AB15ERJN?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Overview Key Features Accessories Ideal Applications Resources

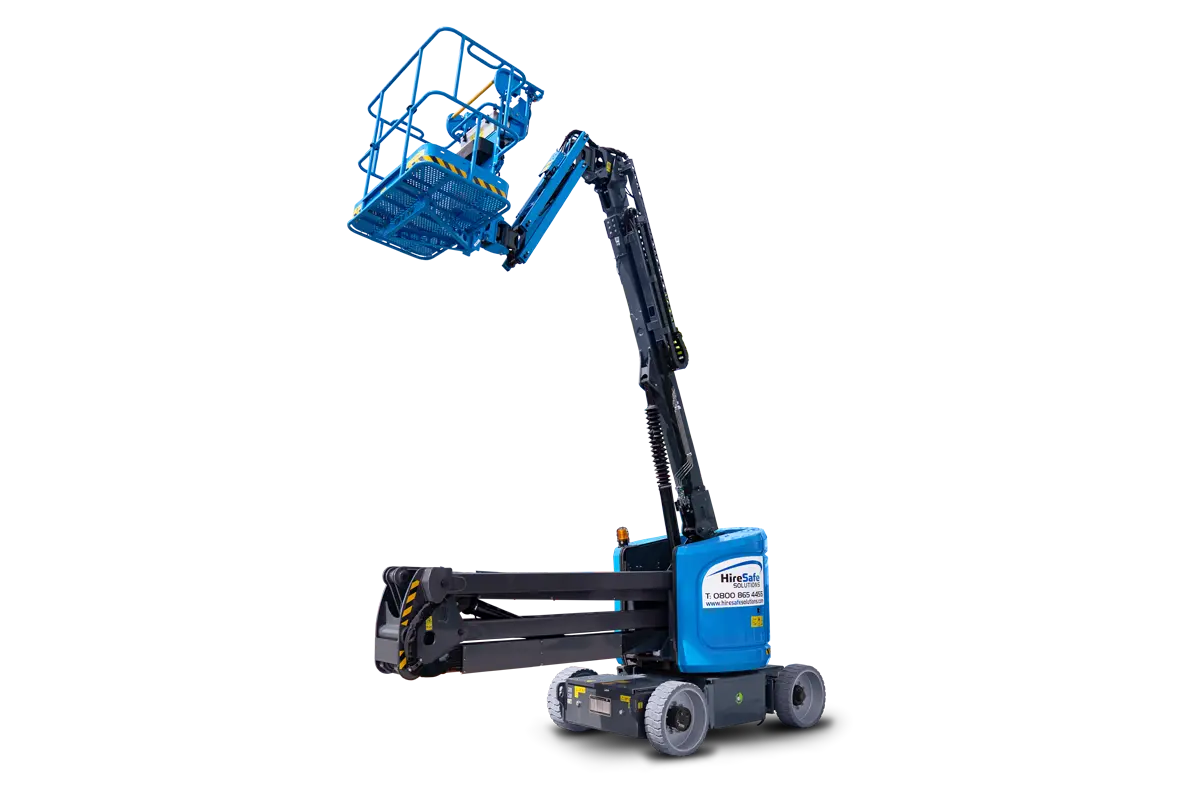

Sinoboom AB15ERJN Electric Articulated Boom Lift

The Sinoboom AB15ERJN Electric Articulated Boom Lift offers a maximum working height of 16.8m, with 7m of horizontal outreach and a 230kg platform capacity, providing an excellent combination of height, reach and manoeuvrability for a wide range of access requirements.

The AB15ERJN is part of Sinoboom's narrow range of boom lifts, designed specifically for working in restricted environments. It boasts a compact width of just 1.5m and zero tail swing, making it easy to manoeuvre through confined spaces and around obstacles where larger articulated booms may struggle. In addition to the 355° turret rotation and 180° platform rotation that this machine offers, the AB15ERJN also comes equipped with a pivoting jib which can be rotated up to 100° horizontally, allowing operators to easily position the platform over and around obstacles.

As an electric-powered machine, it is well suited to both indoor and outdoor applications where low emissions and reduced noise are important. Non-marking solid tyres help protect finished surfaces, and its 25% gradeability and compact turning radius provide good manoeuvrability across a variety of sites. Powering the machine are 8x maintenance-free AGM batteries. These do not require topping up and feature a sealed design to prevent leaks, even if cracked. Additionally, they offer faster recharging times versus traditional lead-acid batteries, meaning downtime is kept to a minimum.



Key Features of the Sinoboom AB15ERJN

  • 16.8m working height
  • 7m horizontal outreach
  • 1.5m narrow width
  • Zero tail swing
  • 100° pivoting jib rotation
  • 180° platform rotation
  • Suitable for indoor and outdoor applications
  • Non-marking tyres and Emission-free operation environmentally sensitive applications
  • 25% gradeability
  • AC drive motors offer high efficiency and maintenance-free operation



Recommended training course for this platform: IPAF Category: Mobile Boom (3b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Super Boom Lifts here.

  • Construction Sites: Perfect for accessing elevated work areas on construction sites, including building maintenance, installation, and repair tasks.
  • Industrial Facilities: Ideal for industrial applications such as warehouse maintenance, equipment servicing, and facility inspections.
  • Internal Fit-Outs: Well-suited for internal fit-outs, including lighting, signage, racking and HVAC.

The Sinoboom AB15ERJN can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks

Boom Lift Pipe Racks
Ground Guards

Ground Guards
Harness

Harness
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead

The Sinoboom AB15ERJN comes equipped with various features designed to enhance your efficiency and performance on the job.

Electric Powered

Electric Powered
Non-Marking Tyres

Non-Marking Tyres

Interested in hiring a Sinoboom AB15ERJN?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
