LGMG AR16J

Specification

Make

LGMG

Model

AR16J

Working Height

17.7m / 58ft 1in

Platform Height

15.7m / 51ft 7in

Maximum Outreach

9.39m / 30ft 10in

Min Weight

8,180.00kg / 18,078lbs

Safe Working Load

230.00kg / 508lbs

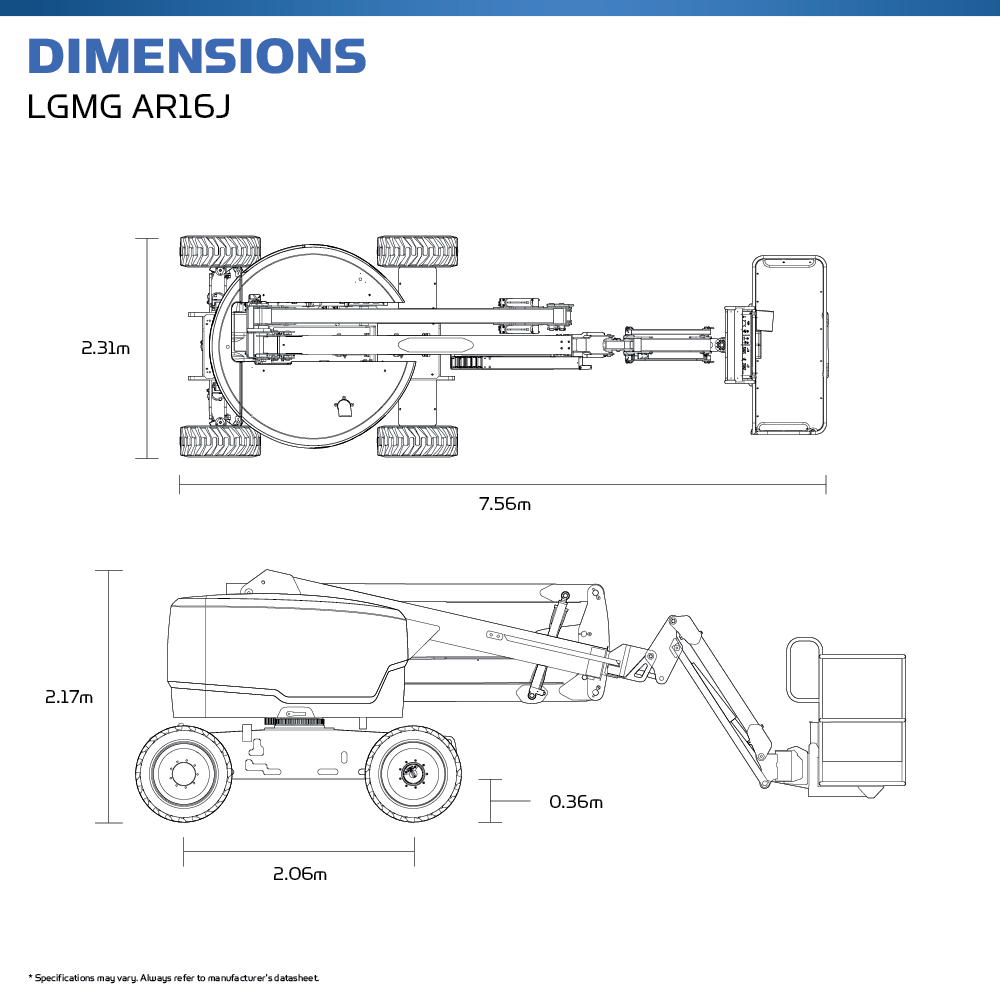

Machine Length

7.56m / 24ft 10in

Machine Width

2.31m / 7ft 7in

Machine Height

2.17m / 7ft 2in

Power Options

Diesel

Turning Radius

4.41m / 14ft 6in

Gradeability

45%

Interested in hiring a LGMG AR16J?

ENQUIRE

0800 865 4455

Download Specification

Overview Key Features Accessories Ideal Applications Resources

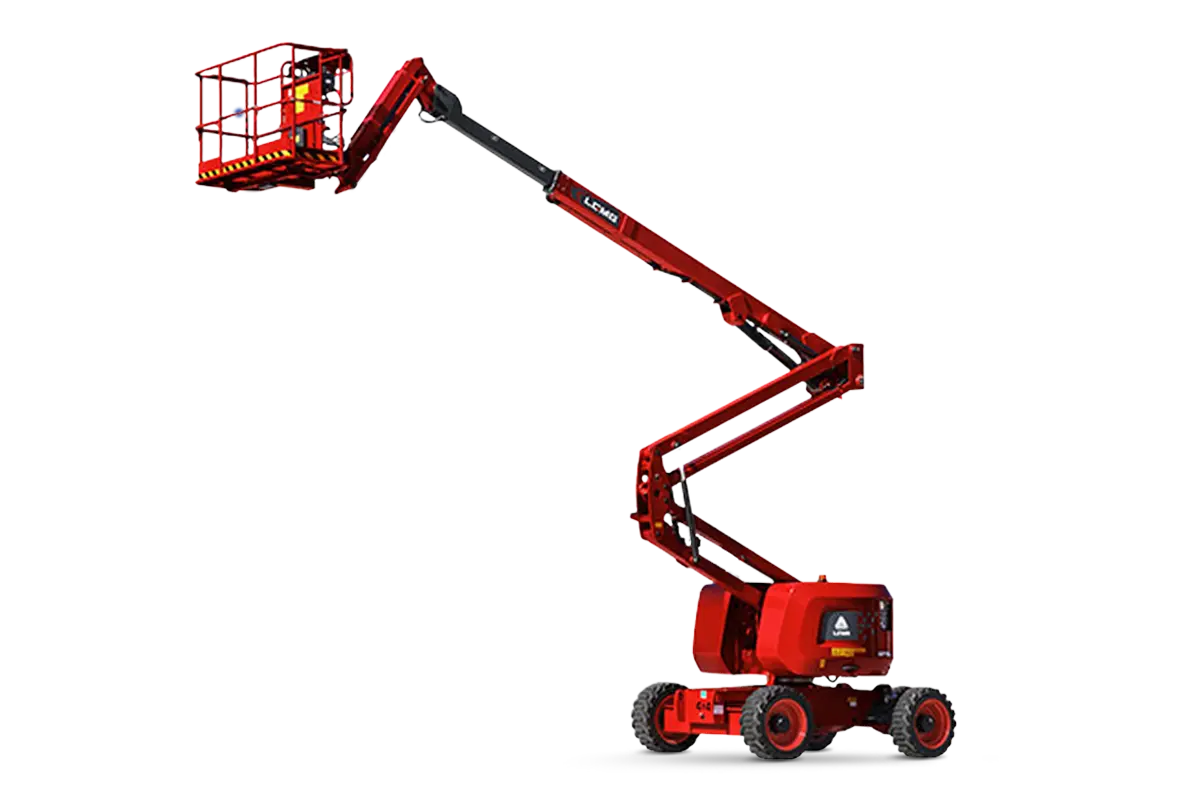

LGMG AR16J Diesel Cherry Picker

The LGMG AR16J is an articulated diesel cherry picker which offers a working height of 17.7m and a horizontal outreach of 9.39m. It is has a maximum safe working load of 230kg, and a platform size of 1.83m x 0.76m, perfect for up to two occupants and their tools. Oscillating axles and four-wheel drive deliver exceptional gradeability on rough terrain, while the proportional controls allow for smooth & precise positioning and comfortable operation.

With a self-levelling platform together with hydraulic platform rotation delivering exceptional productivity together with an intelligent self-diagnostic system for quick troubleshooting and swing out engine tray for easy access and maintenance.

Key Features of the LGMG AR16J

The oscillating axles and four-wheel drive deliver better gradeability on rough terrain
Proportional smooth driving, precise positioning and comfortable operation
Self-levelling platform together with hydraulic platform rotation delivers exceptional productivity
Swing out engine tray for easy access and maintenance
Intelligent self-diagnostic system for quick troubleshooting

Recommended training course for this platform: IPAF Category: Mobile Boom (3b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

The LGMG AR16J can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks
To help make transporting pipes and conduits easier for electricians, plumbers and maintenance workers, these boom pipe racks fit securely to the basket's handrails and have been designed to be as unobtrusive as possible, optimising the platform's work space.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Chalwyn Valves
Typically used in Petrochemical plants and areas where petrol and other flammable materials are present, Chalwyn valves provide emergency overspeed shutdown protection for diesel engines and are the most effective way of preventing runaway situations. They work by blocking the engine's air intake system, cutting off an uncontrolled external fuel source and the air required to keep the engine running.

When operating diesel engines in Petrochemical plants and other hazardous environments such as petrol station forecourts, a sudden release of flammable gas or hydrocarbon vapour can happen at any time and be instantly drawn into the engine's air intake. This external fuel source would prevent the machine from shutting off, meaning the engine would continue to accelerate rapidly. Chalwyn Valves are the most effective way of preventing these runaway situations, providing emergency overspeed shutdown protection by blocking the engine's air intake system, cutting off the uncontrolled external fuel source and the air required to keep the engine running.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Ground Guards
Our tough, durable ground guards offer a safe solution when working on soft or sensitive ground. They are strongly recommended when manoeuvring over grass to prevent the MEWP from sinking and becoming stuck.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Harness
Our safety harness and lanyards provide the operator with the necessary fall protection needed when operating any boom lift (Categories 1b and 3b). They are available to purchase and come with a handy carry bag to store your harness in.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@dev.hiresafesolutions.com
Nappies
Benefit from added peace of mind when working on sensitive flooring by adding a machine nappy onto your hire. Made from a durable PVC, they are available for most of our fleet and help to minimise risk of hydraulic spillages in the event of a leak.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Onboard Generator
When working at height, it can be difficult to have a power supply for small and heavy power tools. A hanging cable reel is far from safe and an external power supply is rather expensive. The solution is a hydraulic generator, which can be connected to the hydraulic circuit of MEWPs to provide all the power required. Hydraulic generators are available in a range of electric potentials, including 110 V and 230 V.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Spark Arrestors
Spark Arrestors can be fitted to the exhaust system of most diesel engines and prevent the emission of sparks when working in potentially flammable or explosive environments.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Telematics
Telematics can be added to your machine and act as an additional layer of security. Not only do they provide real-time monitoring, but they also help to prevent unauthorised use, limiting access to either IPAF-trained personnel only; or specific individuals with a unique pin code. Geo-Fencing can also be setup, further strengthening site security by ensuring the machine can only be operated in a pre-defined area.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Tool Tethers
When working with powered access, there is a risk of dropping tools out of the platform, which if working high enough, could prove fatal. Tool tethers offer a safe and effective way of preventing this and can be easily secured to a wristband, harness or fixed anchoring point on the platform.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Wheel Covers
Wheel covers can be used both indoors and outdoors and are the perfect solution for avoiding black tyre marks when working on finished surfaces. Supplied as a set of 4, our wheel covers are a great alternative when non-marking tyres are not an option.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com

The LGMG AR16J comes equipped with various features designed to enhance your efficiency and performance on the job.

Diesel Powered
Benefit from uninterrupted work cycles thanks to a powerful yet efficient diesel engine, capable of tackling challenging terrains with ease.
Oscillating Axles
Axles that are designed to pivot in the middle to compensate for uneven terrain and keep all tyres on the ground, ensuring exceptional terrainability.
Power to Platform
This machine comes fitted with 110V AC power to platform giving you the ability to power your tools from inside the basket, eliminating the hazards posed by loose cables. Requires a power source to be plugged into the base of the machine to power the platform outlet.
Rough Terrain Tyres
This tyres fitted on this machine feature an aggressive tread design for improved handling and rough-terrain capability. This style of tyre is best for unfinished sites and muddy, uneven ground conditions such as construction sites.
Four Wheel Drive
Benefit from exceptional traction on rough terrain thanks to its 4-wheel drive and the automatic levelling system, which acts on both the wheels and stabilisers.
