Falcon FS330Z Vario
Hires › Super MEWPs › Falcon FS330Z Vario

Falcon FS330Z Vario

Falcon FS330Z Vario

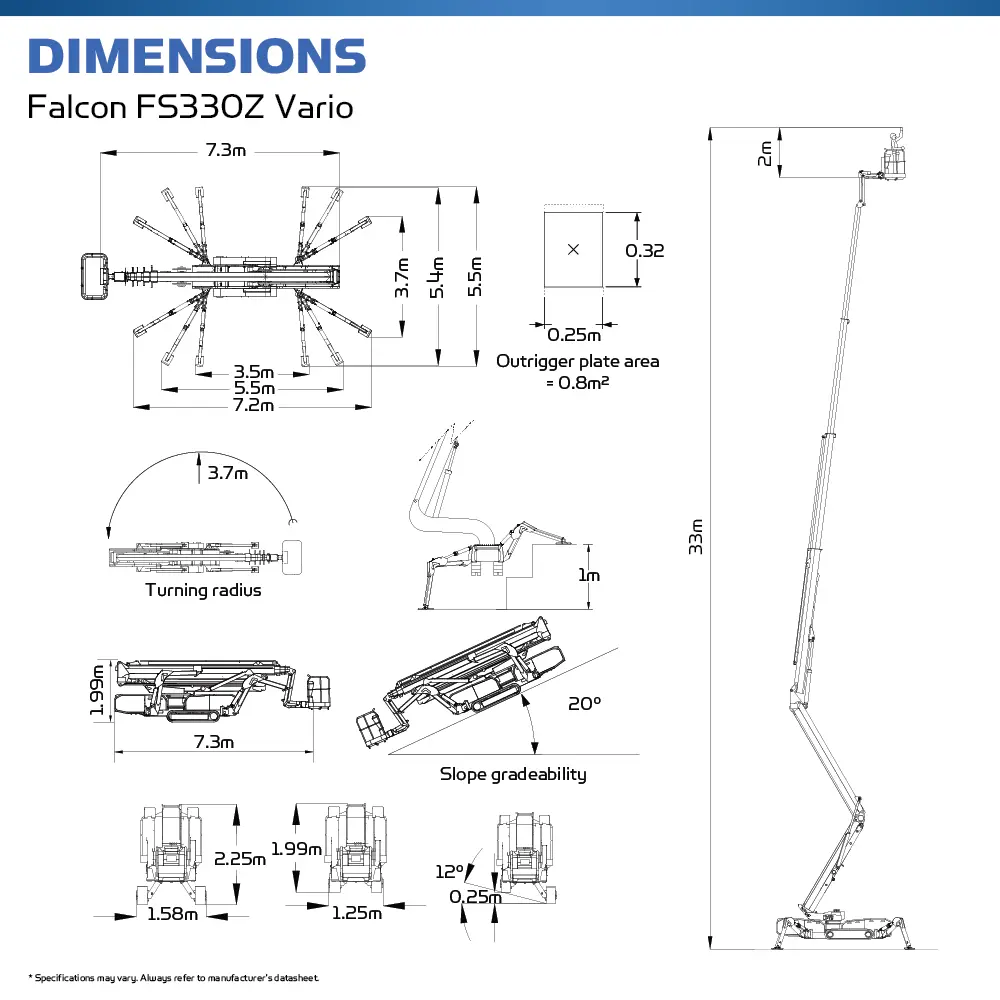

Specification

Make
Make
Falcon
Model
Model
FS 330Z Vario
Working Height
Working Height
33m / 108ft 4in
Platform Height
Platform Height
31m / 101ft 9in
Maximum Outreach
Maximum Outreach
19m / 62ft 5in
Min Weight
Min Weight
6,200.00kg / 13,702lbs
Safe Working Load
Safe Working Load
250.00kg / 553lbs
Machine Length
Machine Length
7.3m / 24ft
Machine Width
Machine Width
1.25m / 4ft 2in
Machine Height
Machine Height
1.99m / 6ft 7in
Power Options
Power Options
Diesel, Electric
Turning Radius
Turning Radius
Zero
Gradeability
Gradeability
20%
Cage Rotation
Cage Rotation
180 degrees

Interested in hiring a Falcon FS330Z Vario?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Overview Key Features Accessories Ideal Applications Resources

Falcon FS330Z Vario Super MEWP

The Falcon FS330Z is the highest articulated Z-boom crawler platform available and is equipped with a two arm over centre riser, four section telescopic aluminium boom, and 110° articulating jib offering the operator a superior working envelope. The Falcon FS330Z offers a working height of 33m, a reach of 19m and an up and over height of 11m. The crawler undercarriage width is also variable width from 1.1m to 1.5m and the machine offers an impressive speed.

Key Features of the Falcon FS330Z Vario

  • Automatic stability & outreach control
  • Computer controlled (can-bus)
  • Proportional control of functions
  • Self-propelled 2 speed selection
  • Battery powered with charger 360Ah
  • Jib-arm 110º
  • 375º turret rotation with integrated stop
  • +/-90º basket rotation
  • Electronic checking of power system (PLC)
  • Manual pump system for emergency lowering
  • Ability to self-load onto trucks and trailers
  • Variable width, hydraulic (1.25m - 1.58m)
  • Minimum width only 1.25m
  • Space for tools, etc. in basket
  • Storage room in chassis with key lock
  • Diesel engine, Kubota 3 cyl. 21,7kW
  • Wireless remote control of all functions
  • 110V/220V AC power supply in the basket
  • Non marking crawlers
  • Individual setting of each outrigger
  • Slope alarm
  • Falcon Service Tool (Remote access via laptop)

Recommended training course for this platform: IPAF Category: Static Boom (1b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Spider Lifts here.

  • High internal spaces and atrium’s
  • Building and factory maintenance
  • Narrow lightweight access
  • Limited setup space
  • Need for flexible outrigger

The Falcon FS330Z Vario can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Ground Guards

Ground Guards
Outrigger Pads

Outrigger Pads
Harness

Harness
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead
Chalwyn Valves

Chalwyn Valves
Spark Arrestors

Spark Arrestors
Boom Lift Pipe Racks

Boom Lift Pipe Racks

The Falcon FS330Z Vario comes equipped with various features designed to enhance your efficiency and performance on the job.

Dual-Fuel Powered

Dual-Fuel Powered
Self-Levelling Outriggers

Self-Levelling Outriggers
Power to Platform

Power to Platform
Non-Marking Tracks

Non-Marking Tracks
Extra Capacity

Extra Capacity

Interested in hiring a Falcon FS330Z Vario?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
