Dingli JCPT 1923DCL

Specification

Make

Dingli

Model

JCPT 1923DCL

Working Height

19m / 62ft 5in

Platform Height

17m / 55ft 10in

Min Weight

10,870.00kg / 24,023lbs

Safe Working Load

680.00kg / 1,503lbs

Machine Length

4.46m / 14ft 8in

Machine Width

2.29m / 7ft 7in

Machine Height

3.6m / 11ft 10in

Power Options

Electric/Battery

Turning Radius

1.25m / 4ft 2in

Gradeability

40%

Interested in hiring a Dingli JCPT 1923DCL?

ENQUIRE

0800 865 4455

Download Specification

Overview Key Features Accessories Ideal Applications Resources

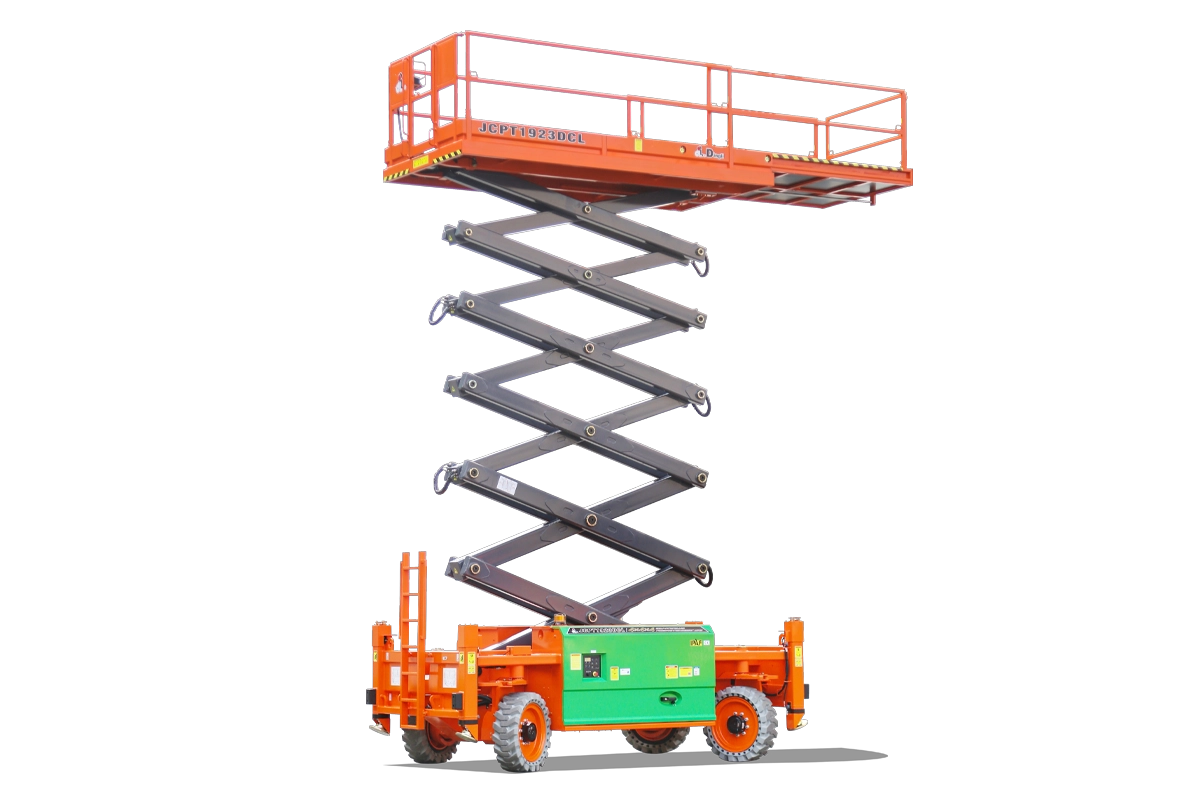

Dingli JCPT 1923DCL Electric Scissor Lift

The Dingli JCPT 1923DCL Super MEWP is an electric-powered wide deck scissor lift suitable for both indoor and outdoor applications. It is similar to its brother, the Dingli JCPT 1923DC, however features a lower overall weight of just 10,870kg making it ideal if weight restrictions need to be considered. This reduction in weight does come at the cost of some of its other specifications so it's important to choose the model that is most suited to your requirements.

The machine features a 680kg lift capacity, both on its main platform and its 2 metre extending deck, and has a spacious max. platform size of 6.06 metres in length x 2 metres in width, allowing up to 4 occupants with materials to work safely at height. The 1923DCL offers four-wheel drive, four-wheel steering and can be driven at its full platform height of 17 metres (19 metres working) making it an extremely versatile solution.

Key Features of the Dingli JCPT 1923DCL

Drivable At Full Height
2m Platform Extension Deck
Proportional Joystick Controls
Self-Locking Gates
Charging Indicator
Four-Wheel Drive
Four-Wheel Steering
Four-Wheel Braking
Self-Weight Lowering System
Tubing Explosion-Proof System
Onboard Fault Diagnostic System
Tilt Alarm
Motion Alarm
Horn
Charging Protection System
Flashing LED Beacon
Foldable Guard Rails
Drive Enable
Automatic One-Way Platform Extension Deck
Manual Brake Release
Lanyard Attachment Point
Tie-Down And Lifting Points
Automatic Levelling Hydraulic Outriggers
Emergency Pump
Emergency Stop Button
Platform Load Sense System

Recommended training course for this platform: IPAF Category: Mobile Vertical (3a)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Scissor Lifts here.

The Dingli JCPT 1923DCL can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Ground Guards
Our tough, durable ground guards offer a safe solution when working on soft or sensitive ground. They are strongly recommended when manoeuvring over grass to prevent the MEWP from sinking and becoming stuck.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Outrigger Pads
Perfect for any equipment fitted with outriggers/jack legs, these outrigger pads help to reduce the high pressures generated on the ground from each outrigger. Most soils and unfinished ground are unable to support these levels of pressure and pose the risk of the MEWP capsizing.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Telematics
Telematics can be added to your machine and act as an additional layer of security. Not only do they provide real-time monitoring, but they also help to prevent unauthorised use, limiting access to either IPAF-trained personnel only; or specific individuals with a unique pin code. Geo-Fencing can also be setup, further strengthening site security by ensuring the machine can only be operated in a pre-defined area.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Tool Tethers
When working with powered access, there is a risk of dropping tools out of the platform, which if working high enough, could prove fatal. Tool tethers offer a safe and effective way of preventing this and can be easily secured to a wristband, harness or fixed anchoring point on the platform.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Transformer & Lead
It's essential to fully charge all electric equipment each night in order to get the most out of them and prolong the lifespan of the batteries. Charging facilities on site can often be limited and 110V power may not even be an option. In these cases, our 110V transformers can be used to lower the 240V voltage coming from a standard UK plug socket down to the 110V that is required to safely charge the electric equipment. These can be supplied in 3.3kVA or 5kVA models depending on the type of machine being charged.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Large Scissor Pipe Racks
Ideal for HVAC, fire sprinkler installation and other applications, these heavy duty pipe racks improve efficiency on site and offer a safe method of lifting large, heavy materials. They also come with a spool holder capable of dispensing cable quickly and smoothly, perfect for electricians and other trades.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com

The Dingli JCPT 1923DCL comes equipped with various features designed to enhance your efficiency and performance on the job.

Electric Powered
This machine is completely electric-powered, perfect for working indoors and in sensitive environments.
Power to Platform
This machine comes fitted with 110V AC power to platform giving you the ability to power your tools from inside the basket, eliminating the hazards posed by loose cables. Requires a power source to be plugged into the base of the machine to power the platform outlet.
Self-Levelling Jacks
Independent/self-levelling outriggers or jacks allow this machine to really excel on uneven and challenging terrains.
Crab Steering – SL
A four-wheel steering mode where all 4 wheels can turn in the same direction, allowing the machine to traverse diagonally, similar to a crab's walk.
Four Wheel Drive
Benefit from exceptional traction on rough terrain thanks to its 4-wheel drive and the automatic levelling system, which acts on both the wheels and stabilisers.
Four-Wheel Steering – SL
A feature allowing all 4 wheels to be utilised for steering, drastically improving the manoeuvrability of the machine in environments where space is limited. The operator can easily cycle between steering modes from the platform's controls.
Non-Marking Rough Terrain Tyres – SL
Non-Marking Rough Terrain Tyres have all of the benefits of standard non-marking tyres, but with the added benefit of being able to be used on challenging terrains.
Large Scissor Single Deck Extension
Benefit from an increased platform working area thanks to this machine's extending deck.

For accurate dimensions, always refer to the manufacturer's specification sheet.
