Dingli BA36HRT

Specification

Make

Dingli

Model

BA36HRT

Working Height

36.2m / 118ft 10in

Platform Height

34.2m / 112ft 3in

Maximum Outreach

19.2m / 63ft

Min Weight

22,050.00kg / 48,731lbs

Safe Working Load

272.00kg / 601lbs

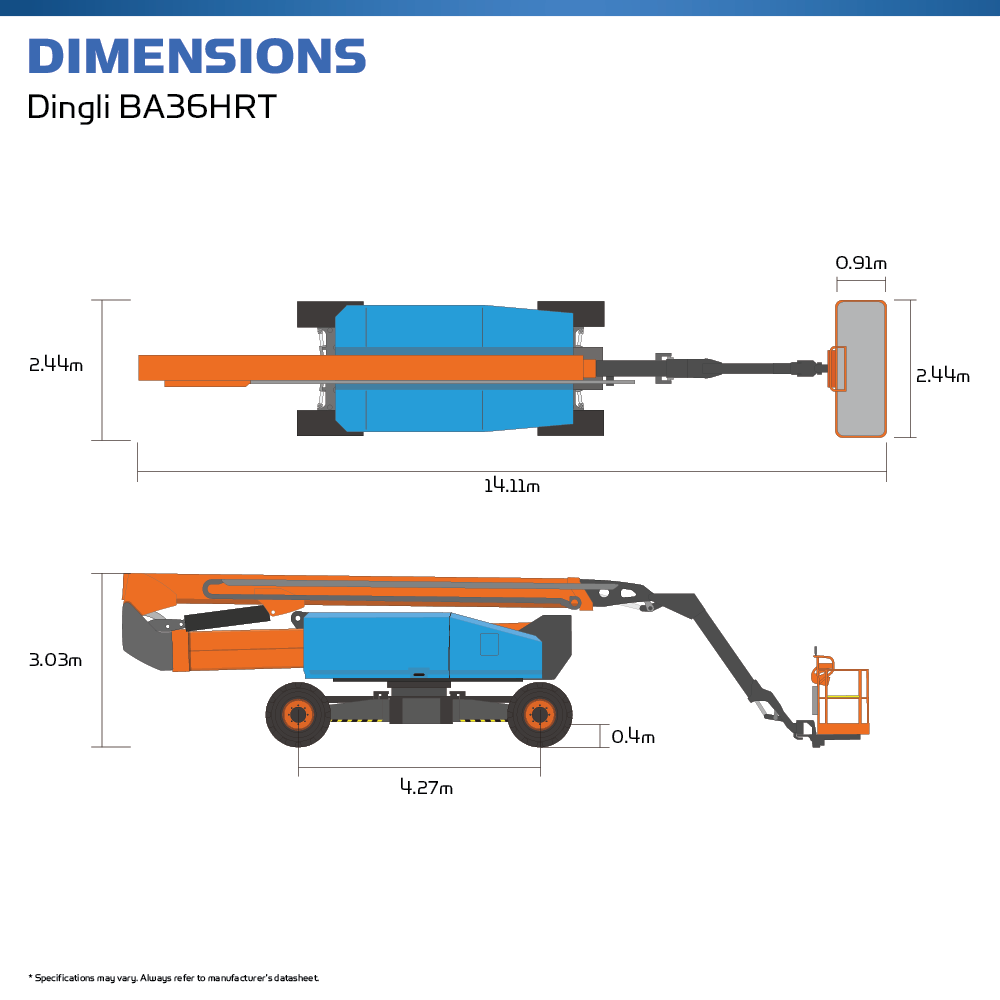

Machine Length

14.11m / 46ft 4in

Machine Width

2.44m / 8ft 1in

Machine Height

3.03m / 10ft

Power Options

Hybrid

Turning Radius

2.99m / 9ft 10in

Gradeability

45%

Cage Rotation

180 degrees

Interested in hiring a Dingli BA36HRT?

ENQUIRE

0800 865 4455

Download Specification

Overview Key Features Accessories Ideal Applications Resources

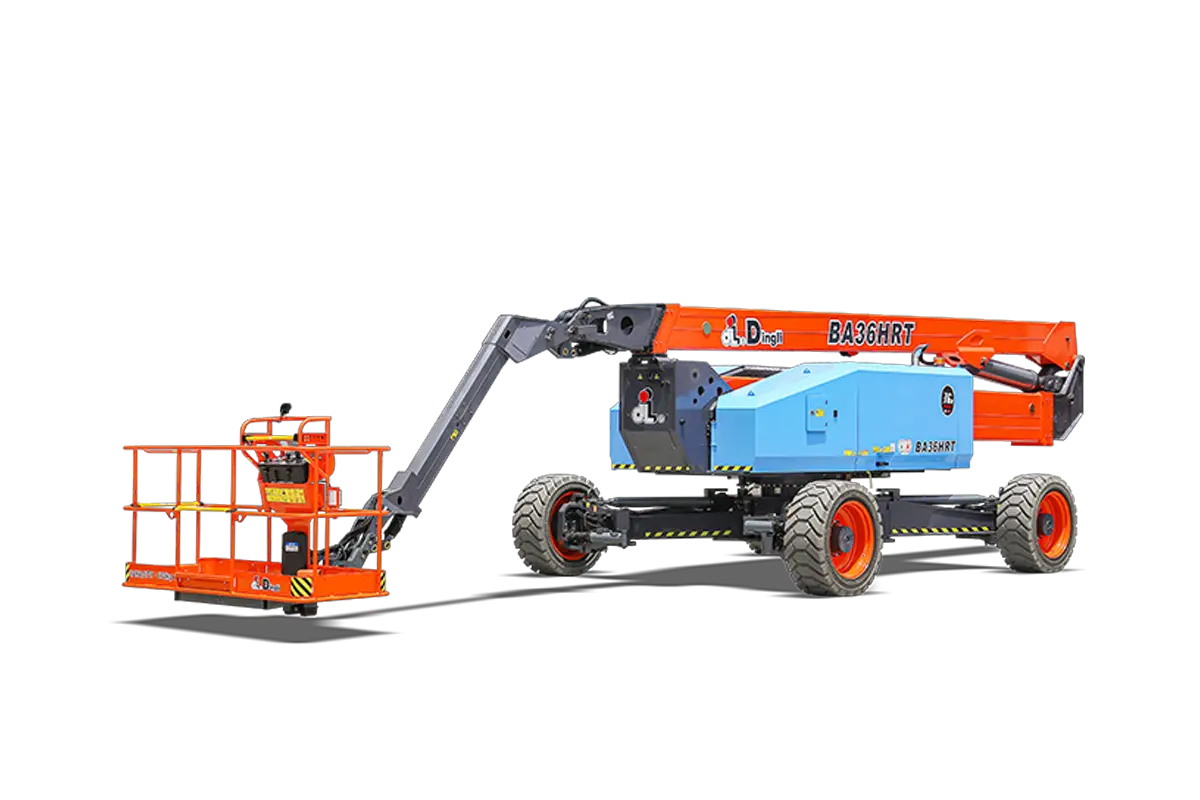

Dingli BA36HRT Super MEWP

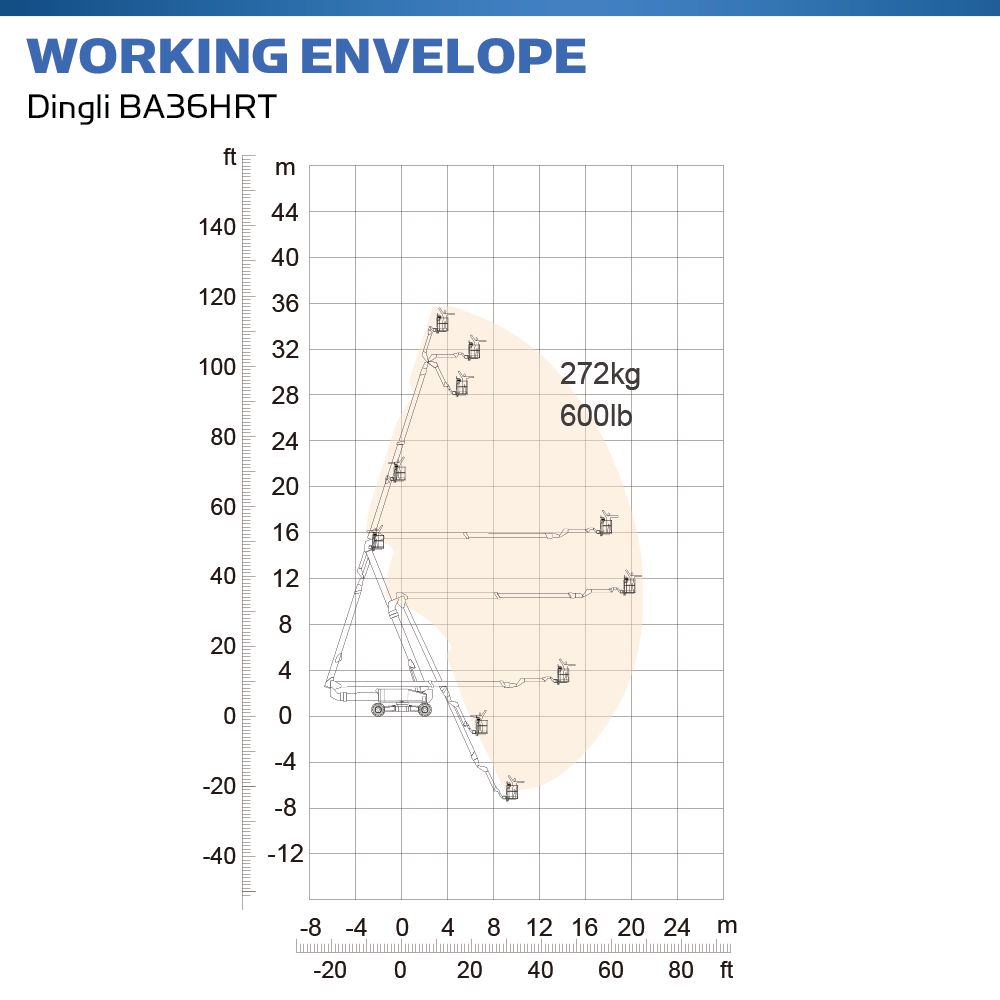

The Dingli BA36HRT Hybrid is an articulated cherry picker which offers a working height of 36.2m and an outreach of 19.2m. It also offers an impressive maximum down probing depth of 4.37m, making it extremely useful if needing to work in areas where access is restricted. It's capable of lifting up to two occupants and their tools (or up to 272kg) throughout its full working envelope, fitted with numerous features as standard, including 360° continuous turret rotation, 180° platform rotation and 226° jib movement.

The hybrid power system, utilises both a powerful 358.4V/173Ah lithium battery and a 55.4kw high power engine, so it can be used both internally and externally in a range of challenging environments. Another notable feature of the Dingli BA36HRT, which is also present in the Dingli BA44RT, is the patented one key in-situ axle expansion, which allows each axle to expand and retract whilst keeping the machine completely stationary; perfect for when space is limited.

Four wheel drive and steering come as standard on this cherry picker, and combined with its rough-terrain tyres and 45% gradeability, mean it excels on uneven and challenging terrains.

One of the Dingli BA36HRT's most impressive accolades is its Category 3 safety architecture, offering full redundancy of electronic control software & hardware, giving your operators complete peace of mind.

Key Features of the Dingli BA36HRT

Load Sense System
Hydraulic Oil Radiator
Fault Diagnosis System
Fully-Opened Chassis Cover
AC Power Cord To Platform
Descent & Movement Alarms
180° Left & Right Swing Platform
Platform Rotation Angle Monitoring
Platform Bottoming Out Protection
Proportional Joystick Controls
Loose & Broken Chain Monitoring
Fast & Slow Speed Monitoring
Working Condition Monitoring Engine Start & Stop Protection
Rexroth Hydrostatic Drive System
Automatic Steering Angle Matching
Real-Time Machine Status Display System
Cat.3 Safety Architecture - ISO 13849-1
Operator Anti-Extrusion Protection System
4.2m Amplitude Flexible Jib With Angle Detection
360° Turntable Continuous Rotation With Inspection
Expandable Chassis With Proprietary Patented Design

Recommended training course for this platform: IPAF Category: Mobile Boom (3b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Cherry Pickers/Boom Lifts here.

The Dingli BA36HRT can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Boom Lift Pipe Racks
To help make transporting pipes and conduits easier for electricians, plumbers and maintenance workers, these boom pipe racks fit securely to the basket's handrails and have been designed to be as unobtrusive as possible, optimising the platform's work space.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Harness
Our safety harness and lanyards provide the operator with the necessary fall protection needed when operating any boom lift (Categories 1b and 3b). They are available to purchase and come with a handy carry bag to store your harness in.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@dev.hiresafesolutions.com
Nappies
Benefit from added peace of mind when working on sensitive flooring by adding a machine nappy onto your hire. Made from a durable PVC, they are available for most of our fleet and help to minimise risk of hydraulic spillages in the event of a leak.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Telematics
Telematics can be added to your machine and act as an additional layer of security. Not only do they provide real-time monitoring, but they also help to prevent unauthorised use, limiting access to either IPAF-trained personnel only; or specific individuals with a unique pin code. Geo-Fencing can also be setup, further strengthening site security by ensuring the machine can only be operated in a pre-defined area.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Tool Tethers
When working with powered access, there is a risk of dropping tools out of the platform, which if working high enough, could prove fatal. Tool tethers offer a safe and effective way of preventing this and can be easily secured to a wristband, harness or fixed anchoring point on the platform.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Wheel Covers
Wheel covers can be used both indoors and outdoors and are the perfect solution for avoiding black tyre marks when working on finished surfaces. Supplied as a set of 4, our wheel covers are a great alternative when non-marking tyres are not an option.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Ground Guards
Our tough, durable ground guards offer a safe solution when working on soft or sensitive ground. They are strongly recommended when manoeuvring over grass to prevent the MEWP from sinking and becoming stuck.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Onboard Generator
When working at height, it can be difficult to have a power supply for small and heavy power tools. A hanging cable reel is far from safe and an external power supply is rather expensive. The solution is a hydraulic generator, which can be connected to the hydraulic circuit of MEWPs to provide all the power required. Hydraulic generators are available in a range of electric potentials, including 110 V and 230 V.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Transformer & Lead
It's essential to fully charge all electric equipment each night in order to get the most out of them and prolong the lifespan of the batteries. Charging facilities on site can often be limited and 110V power may not even be an option. In these cases, our 110V transformers can be used to lower the 240V voltage coming from a standard UK plug socket down to the 110V that is required to safely charge the electric equipment. These can be supplied in 3.3kVA or 5kVA models depending on the type of machine being charged.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com

The Dingli BA36HRT comes equipped with various features designed to enhance your efficiency and performance on the job.

Hybrid Powered
Powered by a smaller, power-optimised EU Stage V-compliant Diesel engine, supported by the machine's electric motor when extra power is needed.
Large Basket
Boost productivity with an increased platform size and multiple entry points, allowing multiple operators to work comfortably, and reducing the need to reposition the platform as often.
Power to Platform
This machine comes fitted with 110V AC power to platform giving you the ability to power your tools from inside the basket, eliminating the hazards posed by loose cables. Requires a power source to be plugged into the base of the machine to power the platform outlet.
Rough Terrain Tyres
This tyres fitted on this machine feature an aggressive tread design for improved handling and rough-terrain capability. This style of tyre is best for unfinished sites and muddy, uneven ground conditions such as construction sites.
Four Wheel Drive
Benefit from exceptional traction on rough terrain thanks to its 4-wheel drive and the automatic levelling system, which acts on both the wheels and stabilisers.
Four-Wheel Steering
A feature allowing all 4 wheels to be utilised for steering, drastically improving the manoeuvrability of the machine in environments where space is limited. The operator can easily cycle between steering modes from the platform's controls.
Crab Steering
A four-wheel steering mode where all 4 wheels can turn in the same direction, allowing the machine to traverse diagonally, similar to a crab's walk.
Extra Capacity
Featuring multiple load capacities with automatic envelope control, this machine offers an increased SWL by automatically adjusting its working envelope.
