CTE Traccess 230
Hires › Super MEWPs › CTE Traccess 230

CTE Traccess 230

CTE Traccess 230

Specification

Make
Make
CTE Traccess
Model
Model
Traccess 230
Working Height
Working Height
23m / 75ft 6in
Platform Height
Platform Height
21m / 68ft 11in
Maximum Outreach
Maximum Outreach
12m / 39ft 5in
Min Weight
Min Weight
2,900.00kg / 6,409lbs
Safe Working Load
Safe Working Load
200.00kg / 442lbs

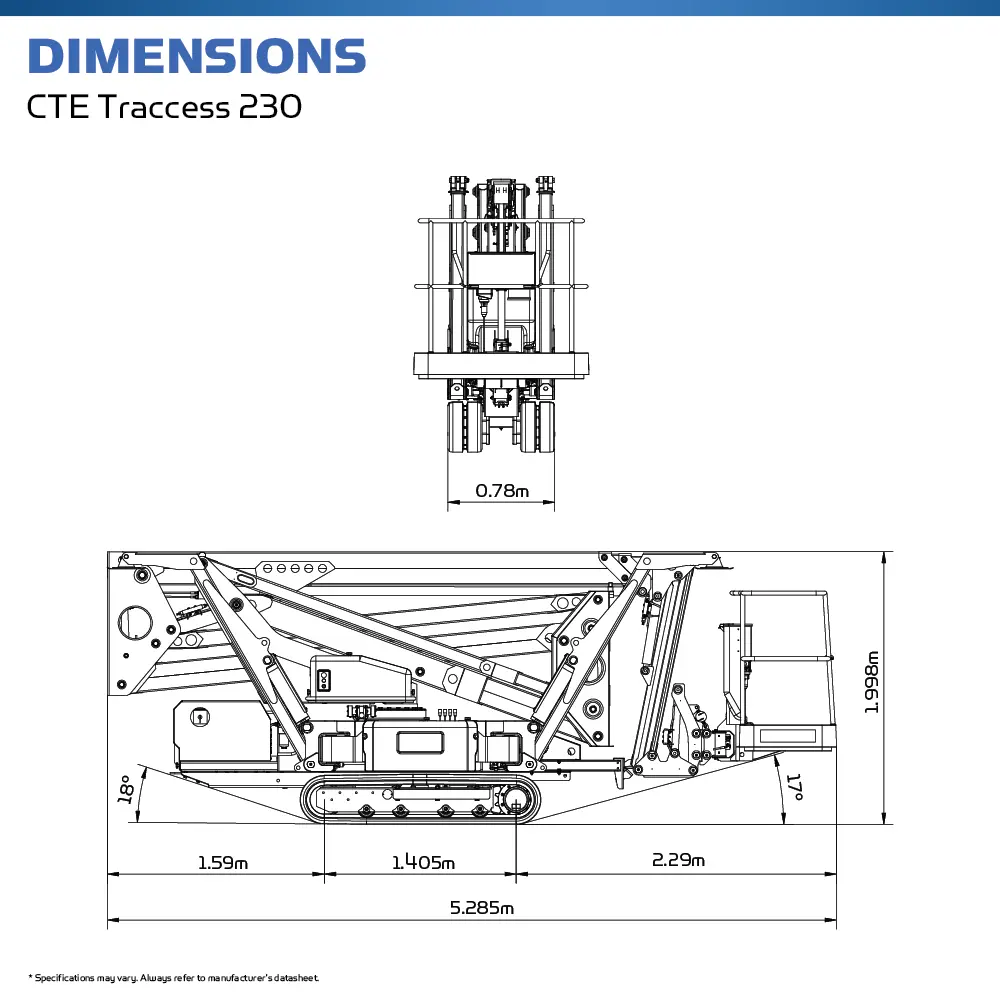

Machine Length
Machine Length
5.28m / 17ft 4in
Machine Width
Machine Width
0.78m / 2ft 7in
Machine Height
Machine Height
1.99m / 6ft 7in
Power Options
Power Options
Diesel, Electric
Turning Radius
Turning Radius
Zero
Gradeability
Gradeability
31%
Cage Rotation
Cage Rotation
90 degrees

Interested in hiring a CTE Traccess 230?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Overview Key Features Accessories Ideal Applications Resources

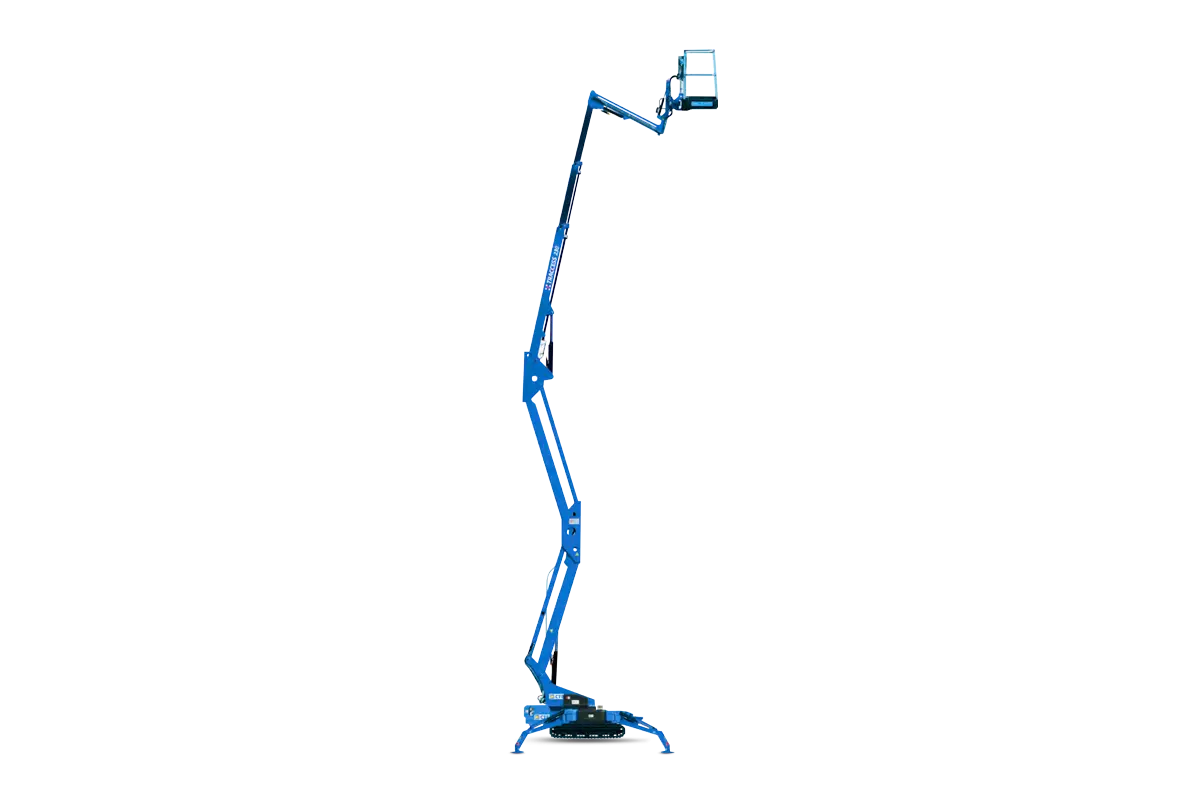

CTE Traccess 230 Super MEWP

The CTE Traccess 230 MEWP is currently the highest CTE tracked access platform. It has very compact dimensions and and is equipped with a removable basket, allowing the machine to access areas that other 23m platforms cannot. The CTE Traccess 230 is typically used with the basket for lifting materials and operators. However, with a special winch attachment, it offers a lifting capacity up to 250kg at a 20.8m working height by simply removing the basket and attaching the winch.

Key Features of the CTE Traccess 230

  • Articulated boom (two elements) telescopic boom (main boom + 2 extension) + jib
  • Sigma boom movement enabled by connecting rods
  • 360° non continuous turret rotation on bearing turntable
  • Proportional electro-hydraulic controls in basket
  • Engine start and stop controls from basket
  • Basket base in composite material with aluminium guardrails (1.3m x 0.7m x 1.1m)
  • 90° right + 90° left hydraulic basket rotation
  • Basket load sensing device
  • Radio remote control
  • Dual drive speed
  • Narrow jacking facility
  • Extending width tracks
  • 230V 2.2 kW electric auxiliary motor
  • 15 HP HONDA petrol engine
  • Automatic hydraulically actioned basket levelling
  • N°4 hydraulic outriggers with ground pressure sensors
  • 230 V AC EC electrical socket in the basket
  • Gradeability approximately 31%
  • Electro-hydraulic steering from the ground with radio control
  • Drive speed max 2km/h
  • 4 stabilisation areas with hydraulic placement

Recommended training course for this platform: IPAF Category: Static Boom (1b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Spider Lifts here.

  • High internal spaces and atrium’s
  • Building and factory maintenance
  • Finished floors
  • Narrow access

The CTE Traccess 230 can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Ground Guards

Ground Guards
Outrigger Pads

Outrigger Pads
Harness

Harness
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead
Boom Lift Pipe Racks

Boom Lift Pipe Racks

The CTE Traccess 230 comes equipped with various features designed to enhance your efficiency and performance on the job.

Dual-Fuel Powered

Dual-Fuel Powered
Self-Levelling Outriggers

Self-Levelling Outriggers
Power to Platform

Power to Platform
Non-Marking Tracks

Non-Marking Tracks
