Hinowa Lightlift 26.14

Specification

Make

Hinowa

Model

26.14

Working Height

25.7m / 84ft 4in

Platform Height

23.7m / 77ft 10in

Maximum Outreach

13.6m / 44ft 8in

Min Weight

4,560.00kg / 10,078lbs

Safe Working Load

230.00kg / 508lbs

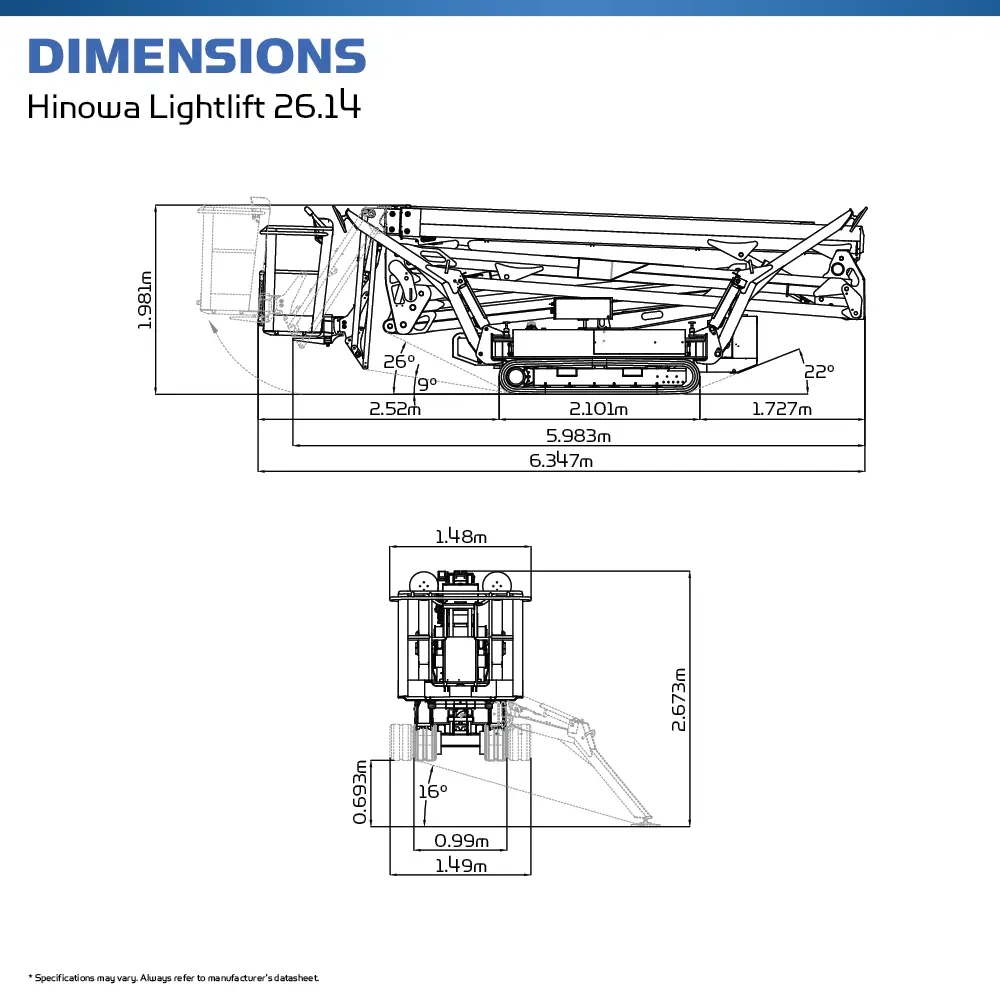

Machine Length

6.347m / 20ft 10in

Machine Width

0.99m / 3ft 3in

Machine Height

1.98m / 6ft 6in

Power Options

Diesel, Electric/Battery

Gradeability

28.7%

Cage Rotation

124 degrees

Interested in hiring a Hinowa Lightlift 26.14?

ENQUIRE

0800 865 4455

Download Specification

Overview Key Features Accessories Ideal Applications Resources

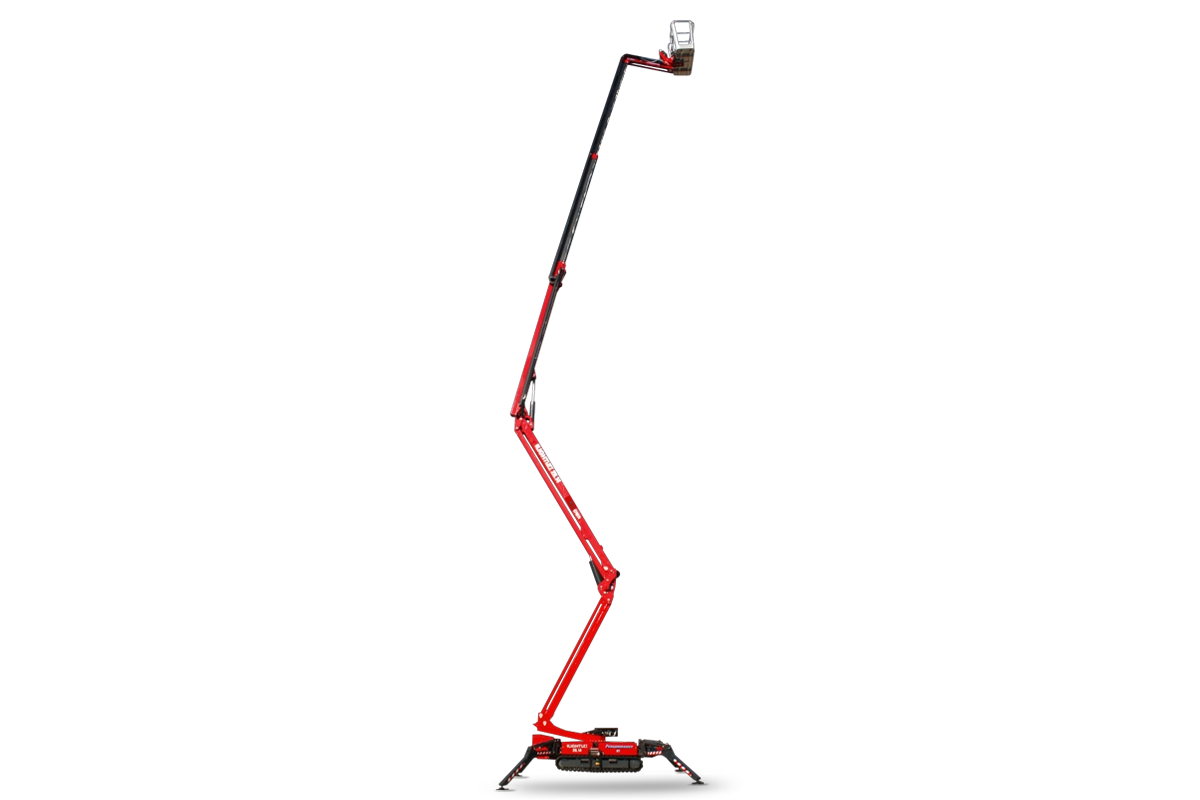

Hinowa Lightlift 26.14 Spider Lift

The Hinowa Lightlift 26.14 has a working height of up to 25.7m, a maximum outreach of 13.6m and is capable of lifting up to 230kg - enough for two occupants with tools - without restriction throughout its entire working envelope. Mounted on a crawler chassis, the Hinowa Liftlift 26.14 has a very low ground pressure, making it suitable for working on soft ground, slopes or uneven terrain. The machine's excellent maneuverability enables it to pass through doorways or in between buildings with ease thanks to its compact width of just 0.99m.

Key Features of the Hinowa Lightlift 26.14

230kg capacity with no restriction on the entire working diagram
Large working area: 25.7m height and 13.6m constant outreach, with trajectory flush against the wall
10m up & over to allow easy clearance of obstacles at height
Fast and precise movements
Lengthened undercarriage for greater stability, improved angle of attack (22°) and lowering of ground pressure during translation, equipped with Auto2Speed technology for maximum speed or torque depending on the working conditions
Large forklift pockets to allow easy lifting with forklift or tele-handler to load, unload and transport the machine
New Kubota Diesel D902 3 cylinder water cooled engine, meets the Tier 4 standards, with 40L capacity tank for an increased range
Incredible widening of the undercarriage, from 0.99m allowing easy passage through narrow and cramped places, to 1.49m for an enhanced lateral stability
Double air-water line allowing the use of varied tools in the basket (1/4’’, 1/2’’)
Heavy Duty anchor hooks for improved safety in transport
New low energy LED lamps on outriggers
Heavy Duty lifting hooks on outriggers for quick and easy positioning with crane
Assisted automatic stabilisation on slopes, up to 16° that allows a ground clearance of 0.7m with machine completely stabilised, with slope control during destabilisation
New Zistaplex® hydraulic hose treatment, anticorrosive up to 600 hours in salt spray tests
Main battery maintenance free AGM type for start & stop, with charge maintainer
Outrigger block valves doubled for safety, also protected from accidental impact
Auxiliary connector for external devices, telematics and fleet tracking
Machine automatically shuts down after 2 hours of inactivity saving battery power
Split hydraulic and electrical systems to simplify the service
Software and safety controls in compliance with new regulations EN280:2013 AND 13849
Remote software version updates via satellite from the remote control

Recommended training course for this platform: IPAF Category: Static Boom (1b)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Spider Lifts here.

The Hinowa Lightlift 26.14 can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Ground Guards
Our tough, durable ground guards offer a safe solution when working on soft or sensitive ground. They are strongly recommended when manoeuvring over grass to prevent the MEWP from sinking and becoming stuck.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Outrigger Pads
Perfect for any equipment fitted with outriggers/jack legs, these outrigger pads help to reduce the high pressures generated on the ground from each outrigger. Most soils and unfinished ground are unable to support these levels of pressure and pose the risk of the MEWP capsizing.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Harness
Our safety harness and lanyards provide the operator with the necessary fall protection needed when operating any boom lift (Categories 1b and 3b). They are available to purchase and come with a handy carry bag to store your harness in.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@dev.hiresafesolutions.com
Telematics
Telematics can be added to your machine and act as an additional layer of security. Not only do they provide real-time monitoring, but they also help to prevent unauthorised use, limiting access to either IPAF-trained personnel only; or specific individuals with a unique pin code. Geo-Fencing can also be setup, further strengthening site security by ensuring the machine can only be operated in a pre-defined area.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Tool Tethers
When working with powered access, there is a risk of dropping tools out of the platform, which if working high enough, could prove fatal. Tool tethers offer a safe and effective way of preventing this and can be easily secured to a wristband, harness or fixed anchoring point on the platform.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Transformer & Lead
It's essential to fully charge all electric equipment each night in order to get the most out of them and prolong the lifespan of the batteries. Charging facilities on site can often be limited and 110V power may not even be an option. In these cases, our 110V transformers can be used to lower the 240V voltage coming from a standard UK plug socket down to the 110V that is required to safely charge the electric equipment. These can be supplied in 3.3kVA or 5kVA models depending on the type of machine being charged.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Chalwyn Valves
Typically used in Petrochemical plants and areas where petrol and other flammable materials are present, Chalwyn valves provide emergency overspeed shutdown protection for diesel engines and are the most effective way of preventing runaway situations. They work by blocking the engine's air intake system, cutting off an uncontrolled external fuel source and the air required to keep the engine running.

When operating diesel engines in Petrochemical plants and other hazardous environments such as petrol station forecourts, a sudden release of flammable gas or hydrocarbon vapour can happen at any time and be instantly drawn into the engine's air intake. This external fuel source would prevent the machine from shutting off, meaning the engine would continue to accelerate rapidly. Chalwyn Valves are the most effective way of preventing these runaway situations, providing emergency overspeed shutdown protection by blocking the engine's air intake system, cutting off the uncontrolled external fuel source and the air required to keep the engine running.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Spark Arrestors
Spark Arrestors can be fitted to the exhaust system of most diesel engines and prevent the emission of sparks when working in potentially flammable or explosive environments.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Boom Lift Pipe Racks
To help make transporting pipes and conduits easier for electricians, plumbers and maintenance workers, these boom pipe racks fit securely to the basket's handrails and have been designed to be as unobtrusive as possible, optimising the platform's work space.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com

The Hinowa Lightlift 26.14 comes equipped with various features designed to enhance your efficiency and performance on the job.

Dual-Fuel Powered
Choose between emission-free electric operation, and rugged and reliable diesel operation at the press of a button.
Non-Marking Tracks
With non-marking rubber tracks, you’re better equipped for any challenge around the job site. Non-marking rubber tracks prevent black marks from appearing when you use your machine on more sensitive or light-coloured floors like concrete slabs.
Power to Platform
This machine comes fitted with 110V AC power to platform giving you the ability to power your tools from inside the basket, eliminating the hazards posed by loose cables. Requires a power source to be plugged into the base of the machine to power the platform outlet.
Self-Levelling Outriggers
Automatic Self-Levelling Outriggers offer increased stability and ensure optimum safety whilst working at height, even on extremely challenging terrains.
Variable Undercarriage
Variable undercarriage for increased stabilisation without restrictions
Detachable Platform Controls
Detachable Platform Controls via a flexible wire for easy manoeuvring in confined spaces.
Resizable Undercarriage
Expanding/Contracting tracks allow the machine to be manoeuvred through confined areas when at its narrowest, and provide increased stability when fully expanded.
