CTE Traccess 170

CTE Traccess 170

Specification

Make
Make
CTE Traccess
Model
Model
Traccess 170
Working Height
Working Height
17m / 55ft 10in
Platform Height
Platform Height
15m / 49ft 3in
Maximum Outreach
Maximum Outreach
7.5m / 24ft 8in
Min Weight
Min Weight
2,050.00kg / 4,531lbs
Safe Working Load
Safe Working Load
200.00kg / 442lbs
Machine Length
Machine Length
4.3m / 14ft 2in
Machine Width
Machine Width
0.8m / 2ft 8in
Machine Height
Machine Height
2m / 6ft 7in
Power Options
Power Options
Diesel, Electric
Turning Radius
Turning Radius
Zero
Gradeability
Gradeability
31%
Cage Rotation
Cage Rotation
180 degrees

Interested in hiring a CTE Traccess 170?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification

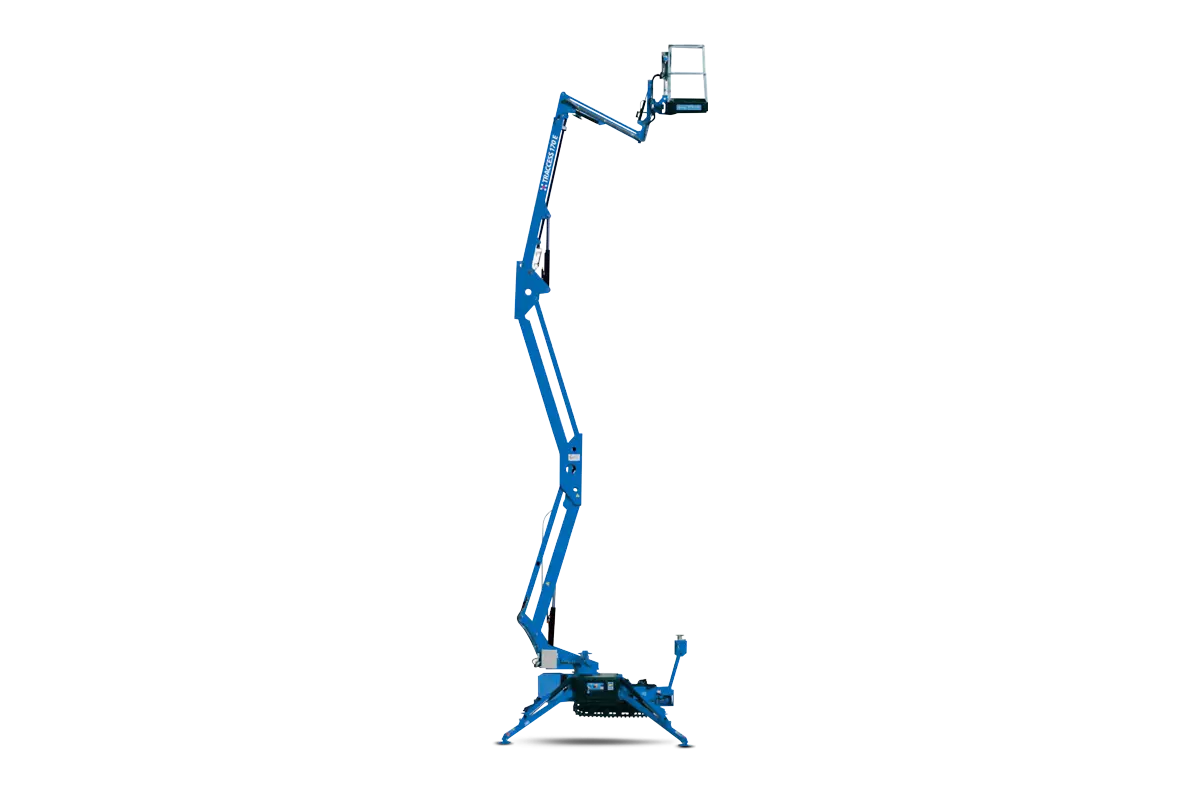

CTE Traccess 170 Super Lift

The CTE Traccess 170 has a working height of 17m, a weight of just over 2,000kg and offers an outreach of 7.5m. Its narrow width and non marking tracks makes this unit ideal for indoor use where floor loading's and access/regress are a problem.

Key Features of the CTE Traccess 170

  • Compact closed dimensions 0.8m (width) x 2m (height)
  • Individual proportional hydraulic controls
  • Basket load sensing device
  • 200kg basket capacity throughout entire working area
  • Clean top boom, internal mounted services
  • Electric engine 48V
  • Articulated boom (two elements)+telescopic boom (main boom+ extension)+ jib
  • 330°turret rotation on bearing turntable
  • Individual, proportional electrohydraulic controls in basket
  • Engine start and stop controls from basket
  • Basket base in composite material with aluminium guardrails (1.3 x 0.7 x 1.1m)
  • Automatic hydraulically actioned basket levelling
  • Basket load sensing device
  • N°4 hydraulic outriggers with ground pressure sensors
  • 230V AC EC electrical socket in the basket
  • Gradeability approximately 31%
  • Drive speed max 0.8 Km/h
  • Electro-hydraulic steering from the ground with an umbilical remote control system
  • Remote spiral cable for traverse from ground
  • Electric engine 48V
  • Lithium 100Ah batteries power (charging cycles permitted 2000)
  • Working autonomy (estimated) 4-5 hours

Recommended training course for this platform: IPAF Category: Static Boom (1b)

Available to hire, lease or buy from Hire Safe Solutions in the  UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Spider Lifts here.

  • High internal spaces and atriums
  • Building and factory maintenance
  • Finished floors
  • Narrow access
  • Wind Power
  • Underbridge Maintenance
  • Restoration
  • Greenery Maintenance

The CTE Traccess 170 can be fitted-out with an assortment of accessories to increase productivity and safety on site.

  • Ground Guards

    Ground Guards

    Our tough, durable ground guards offer a safe solution when working on soft or sensitive ground. They are strongly recommended when manoeuvring over grass to prevent the MEWP from sinking and becoming stuck.

    For more information or to add this accessory to your hire, get in contact with us today

    Call: 0800 865 4455

    Email: info@hiresafesolutions.com

  • Outrigger Pads

    Outrigger Pads

    Perfect for any equipment fitted with outriggers/jack legs, these outrigger pads help to reduce the high pressures generated on the ground from each outrigger. Most soils and unfinished ground are unable to support these levels of pressure and pose the risk of the MEWP capsizing.

    For more information or to add this accessory to your hire, get in contact with us today

    Call: 0800 865 4455

    Email: info@hiresafesolutions.com

  • Harness

    Harness

    Our safety harness and lanyards provide the operator with the necessary fall protection needed when operating any boom lift (Categories 1b and 3b). They are available to purchase and come with a handy carry bag to store your harness in.

    For more information or to add this accessory to your hire, get in contact with us today

    Call: 0800 865 4455

    Email: info@dev.hiresafesolutions.com

  • Telematics

    Telematics

    Telematics can be added to your machine and act as an additional layer of security. Not only do they provide real-time monitoring, but they also help to prevent unauthorised use, limiting access to either IPAF-trained personnel only; or specific individuals with a unique pin code. Geo-Fencing can also be setup, further strengthening site security by ensuring the machine can only be operated in a pre-defined area.

    For more information or to add this accessory to your hire, get in contact with us today

    Call: 0800 865 4455

    Email: info@hiresafesolutions.com

  • Tool Tethers

    Tool Tethers

    When working with powered access, there is a risk of dropping tools out of the platform, which if working high enough, could prove fatal. Tool tethers offer a safe and effective way of preventing this and can be easily secured to a wristband, harness or fixed anchoring point on the platform.

    For more information or to add this accessory to your hire, get in contact with us today

    Call: 0800 865 4455

    Email: info@hiresafesolutions.com

  • Transformer & Lead

    Transformer & Lead

    It's essential to fully charge all electric equipment each night in order to get the most out of them and prolong the lifespan of the batteries. Charging facilities on site can often be limited and 110V power may not even be an option. In these cases, our 110V transformers can be used to lower the 240V voltage coming from a standard UK plug socket down to the 110V that is required to safely charge the electric equipment. These can be supplied in 3.3kVA or 5kVA models depending on the type of machine being charged.

    For more information or to add this accessory to your hire, get in contact with us today

    Call: 0800 865 4455

    Email: info@hiresafesolutions.com

  • Boom Lift Pipe Racks

    Boom Lift Pipe Racks

    To help make transporting pipes and conduits easier for electricians, plumbers and maintenance workers, these boom pipe racks fit securely to the basket's handrails and have been designed to be as unobtrusive as possible, optimising the platform's work space.

    For more information or to add this accessory to your hire, get in contact with us today

    Call: 0800 865 4455

    Email: info@hiresafesolutions.com

The CTE Traccess 170 comes equipped with various features designed to enhance your efficiency and performance on the job.

  • Dual-Fuel Powered

    Dual-Fuel Powered

    Choose between emission-free electric operation, and rugged and reliable diesel operation at the press of a button.

  • Self-Levelling Outriggers

    Self-Levelling Outriggers

    Automatic Self-Levelling Outriggers offer increased stability and ensure optimum safety whilst working at height, even on extremely challenging terrains.

  • Power to Platform

    Power to Platform

    This machine comes fitted with 110V AC power to platform giving you the ability to power your tools from inside the basket, eliminating the hazards posed by loose cables. Requires a power source to be plugged into the base of the machine to power the platform outlet.

  • Non-Marking Tracks

    Non-Marking Tracks

    With non-marking rubber tracks, you’re better equipped for any challenge around the job site. Non-marking rubber tracks prevent black marks from appearing when you use your machine on more sensitive or light-coloured floors like concrete slabs.

  • Detachable Platform Controls

    Detachable Platform Controls

    Detachable Platform Controls via a flexible wire for easy manoeuvring in confined spaces.
