Skyjack SJ9253RT
Hires › Scissor Lifts › Skyjack SJ9253RT

Skyjack SJ9253RT

Skyjack SJ9253RT

Specification

Make
Make
Skyjack
Model
Model
SJ9253RT
Working Height
Working Height
17.98m / 59ft
Platform Height
Platform Height
16.15m / 53ft
Min Weight
Min Weight
8,301.00kg / 18,345lbs
Safe Working Load
Safe Working Load
680.00kg / 1,503lbs

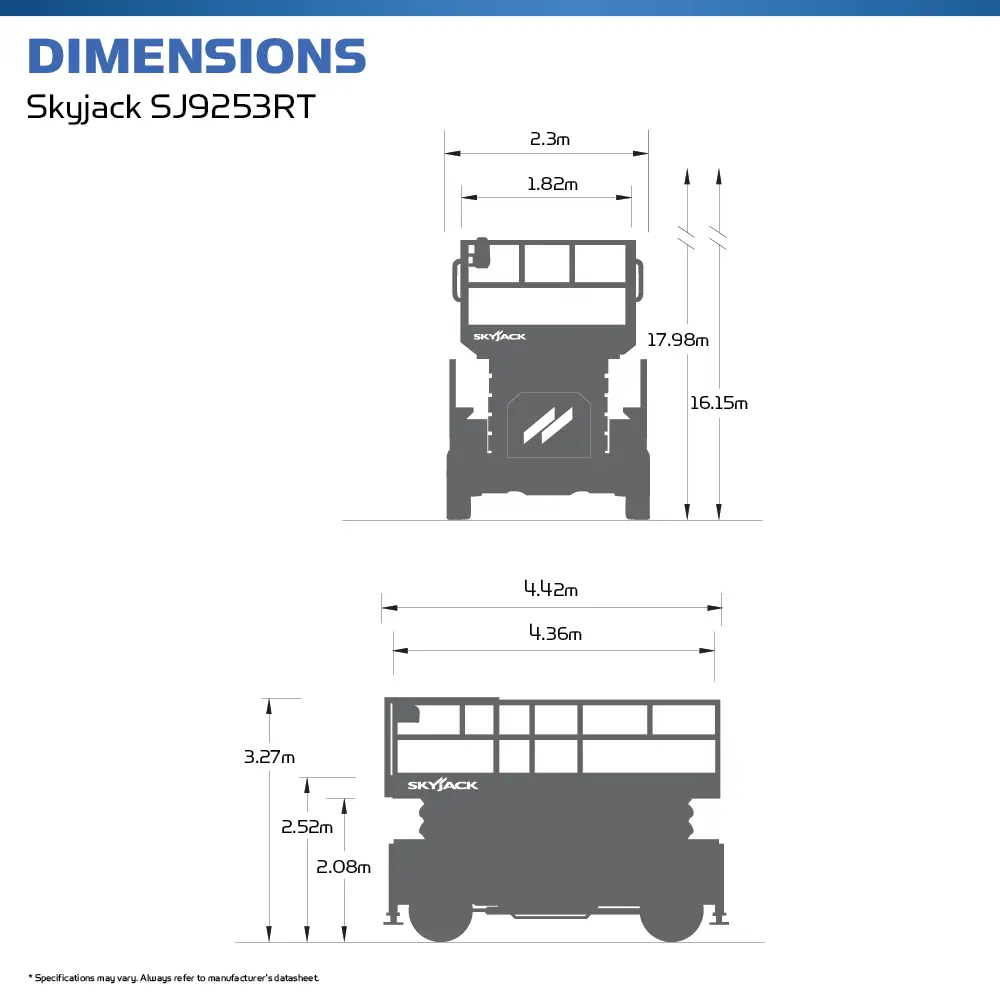

Machine Length
Machine Length
4.5m / 14ft 10in
Machine Width
Machine Width
2.3m / 7ft 7in
Machine Height
Machine Height
2.43m / 8ft
Power Options
Power Options
Diesel
Turning Radius
Turning Radius
3.33m / 11ft
Gradeability
Gradeability
35%

Interested in hiring a Skyjack SJ9253RT?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Overview Key Features Accessories Ideal Applications Resources

Skyjack SJ9253RT Diesel Scissor Lift

The Skyjack SJ9253RT is a rough terrain scissor lift, offering one of the largest platforms and capacities on the market. This machine features an axle based four wheel drive which provides it with an outstanding performance on a variety of terrains. It comes with operator controlled locking rear differential and limited slip front differential with oversized platform with optimal clearance over side of machine.

Key Features of the Skyjack SJ9253RT

  • AXLDRIVE™ Axle-based 4WD system
  • Operator controlled locking rear differential and limited slip front differential
  • Up to 40% gradeability
  • Wet disc SAHR brakes (rear axle)
  • SKYCODED™ Colour coded and numbered wiring system
  • On-board visual interface with diagnostic capabilities
  • Kubota D1305 Tier 4F diesel engine
  • Auto levelling outriggers
  • Self-centering scissor design to support optional dual extension decks
  • Lockable power disconnect switch
  • Flashing light
  • Proportional controls
  • Up to 1,247 kg capacity
  • Oversized platform with optimal clearance over side of machine
  • Fold down hinged railing system
  • Full height entry gates
  • 1.52m Roll-out extension deck
  • High strength and impact resistant composite control box
  • Overload sensing system
  • 110V AC Outlet on platform with GFI
  • Tilt alarm (4.5° x 2.5°) with drive and lift cut-out
  • Single point emergency lowering
  • Operator horn
  • All motion alarm
  • Tie down / lifting lugs
  • Grip lug solid tyres
  • Telematics ready

Recommended training course for this platform: IPAF Category: Mobile Vertical (3a)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Scissor Lifts here.

  • General construction
  • Cladding
  • Architectural glazing
  • General building maintenance

The Skyjack SJ9253RT can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Chalwyn Valves

Chalwyn Valves
Ground Guards

Ground Guards
Large Scissor Pipe Racks

Large Scissor Pipe Racks
Nappies

Nappies
Onboard Generator

Onboard Generator
Outrigger Pads

Outrigger Pads
Spark Arrestors

Spark Arrestors
Telematics

Telematics
Tool Tethers

Tool Tethers
Wheel Covers

Wheel Covers

The Skyjack SJ9253RT comes equipped with various features designed to enhance your efficiency and performance on the job.

Diesel Powered

Diesel Powered
Power to Platform

Power to Platform
Dual Deck Extensions

Dual Deck Extensions
Rough Terrain Tyres - SL

Rough Terrain Tyres - SL
Self-Levelling Jacks

Self-Levelling Jacks
