Skyjack SJ4632

Skyjack SJ4632

Specification

Make
Make
Skyjack
Model
Model
SJIII 4632
Working Height
Working Height
11.58m / 38ft
Platform Height
Platform Height
9.75m / 32ft
Min Weight
Min Weight
2,302.00kg / 5,087lbs
Safe Working Load
Safe Working Load
317.00kg / 701lbs

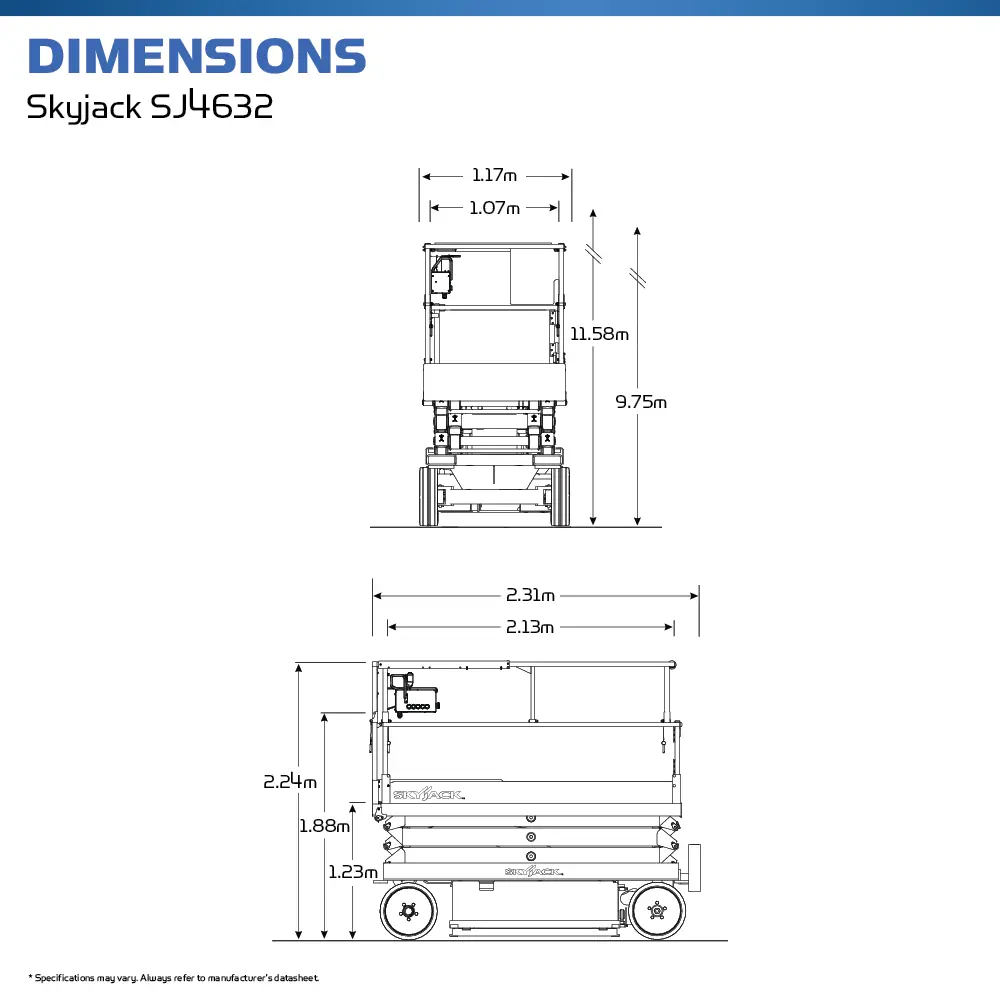

Machine Length
Machine Length
2.31m / 7ft 7in
Machine Width
Machine Width
1.17m / 3ft 11in
Machine Height
Machine Height
2.24m / 7ft 5in
Power Options
Power Options
Electric/Battery
Turning Radius
Turning Radius
2.37m / 7ft 10in
Gradeability
Gradeability
25%

Interested in hiring a Skyjack SJ4632?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Overview Key Features Accessories Ideal Applications Resources

Skyjack SJ4632 Electric Scissor Lift

The Skyjack SJ4632 Electric Scissor Lift is an industry leader. This DC powered lift is ideal for indoor work where accuracy and precision turns around sensitive material is critical.

It features a 1.22m roll out extension deck for extra work space, quick fold down handrails and can easily be transported on a plant trailer.

Key Features of the Skyjack SJ4632

  • DC motor controller
  • Drivable at full height
  • Variable speed, rear two wheel hydraulic drive
  • Dual holding brakes
  • Proportional controls for drive & lift functions
  • 1.22m Roll out extension deck
  • 24V DC power source
  • Low voltage battery protection
  • 25% gradeability
  • Solid rubber, non-marking tyres
  • Pothole protection system
  • 110V AC outlet on platform with GFI
  • 28mph wind rating (12.5 m/s)
  • Tilt alarm with drive & lift cut-out
  • All motion audible alarm
  • Lanyard attachment points
  • Operator horn
  • Hinged railing system
  • Forklift pockets and tie down/lift lugs
  • Relay based control system
  • SKYCODED™ colour coded and numbered wiring system
  • Telematics ready

Recommended training course for this platform: IPAF Category: Mobile Vertical (3a)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Scissor Lifts here.

  • Narrow or difficult spaces
  • Warehouse operations
  • Stocktaking
  • Mechanical/electrical installation

The Skyjack SJ4632 can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Ground Guards

Ground Guards
Small Scissor Pipe Racks

Small Scissor Pipe Racks
Shrouded Controls/Lift Enable

Shrouded Controls/Lift Enable
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead

The Skyjack SJ4632 comes equipped with various features designed to enhance your efficiency and performance on the job.

Electric Powered

Electric Powered
Non-Marking Tyres

Non-Marking Tyres
Power to Platform

Power to Platform
Small Scissor Single Deck Extension

Small Scissor Single Deck Extension

Interested in hiring a Skyjack SJ4632?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
