JLG 2030ES
Hires › Scissor Lifts › JLG 2030ES

JLG 2030ES

JLG 2030ES

Specification

Make
Make
JLG
Model
Model
2030ES
Working Height
Working Height
8.1m / 26ft 7in
Platform Height
Platform Height
6.1m / 20ft 1in
Min Weight
Min Weight
1,737.00kg / 3,839lbs
Safe Working Load
Safe Working Load
363.00kg / 802lbs

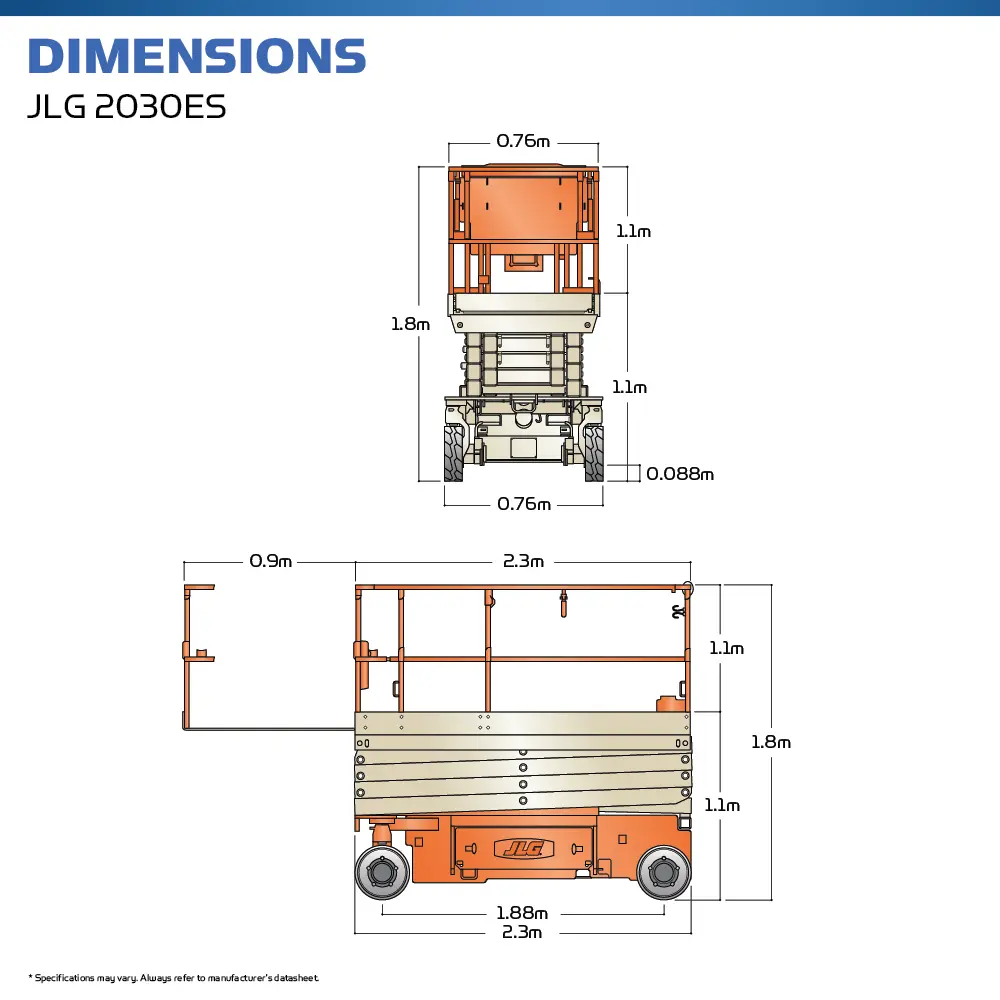

Machine Length
Machine Length
2.3m / 7ft 7in
Machine Width
Machine Width
0.76m / 2ft 6in
Machine Height
Machine Height
1.8m / 5ft 11in
Power Options
Power Options
Electric/Battery
Turning Radius
Turning Radius
Zero
Gradeability
Gradeability
25%

Interested in hiring a JLG 2030ES?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Overview Key Features Accessories Ideal Applications Resources

JLG 2030ES Electric Scissor Lift

The JLG 2030ES has a working height of 8.1m and comes equipped with electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings on the entire machine. This will keep you on the job longer and reduce your operating costs by reducing chances for leaks and service calls. This machine is most commonly required by fit out contractors, mechanical and electrical installers who are working on internal projects.

Key Features of the JLG 2030ES

  • Proportional Controls
  • Industry Leading Duty Cycles
  • Drywall Gate
  • Battery Condition Indicator
  • Fold-Down Guard Rails
  • 110V-AC Receptacle in Platform
  • Slide-Out Battery Trays
  • Automatic Traction Control (ATC)
  • All Motion Alarm
  • 20 Amp Automatic SCR Charger
  • Horn
  • Manual Descent Pull Cable
  • Tilt Alarm and Light
  • Lanyard Attach Points
  • Moveable, Removable Platform Control
  • Powder-Coated
  • Console with Rail Mounting Bracket
  • Nickel Plated Pins
  • Lubrication Free Scissor Arm Bushings
  • Scissor Maintenance Prop
  • Mechanized Pothole Protection
  • Machine Tie Downs
  • Fork Lift Pockets, Lift from Side and Rear
  • 0.91m Roll-Out Deck Extension
  • 1.27m Roll-Out Deck Extension
  • Four 6V, 220 Amp-Hour Deep Cycle Batteries

Recommended training course for this platform: IPAF Category: Mobile Vertical (3a)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Scissor Lifts here.

  • Narrow or difficult spaces
  • Warehouse operations
  • Stocktaking
  • Mechanical/electrical installation

The JLG 2030ES can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Ground Guards

Ground Guards
Small Scissor Pipe Racks

Small Scissor Pipe Racks
Shrouded Controls/Lift Enable

Shrouded Controls/Lift Enable
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead

The JLG 2030ES comes equipped with various features designed to enhance your efficiency and performance on the job.

Electric Powered

Electric Powered
Non-Marking Tyres

Non-Marking Tyres
Power to Platform

Power to Platform
Small Scissor Single Deck Extension

Small Scissor Single Deck Extension

Interested in hiring a JLG 2030ES?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
