Genie GS4047
Hires › Scissor Lifts › Genie GS4047

Genie GS4047

Genie GS4047

Specification

Make
Make
Genie
Model
Model
GS 4047
Working Height
Working Height
13.75m / 45ft 2in
Platform Height
Platform Height
11.75m / 38ft 7in
Min Weight
Min Weight
3,221.00kg / 7,118lbs
Safe Working Load
Safe Working Load
350.00kg / 774lbs

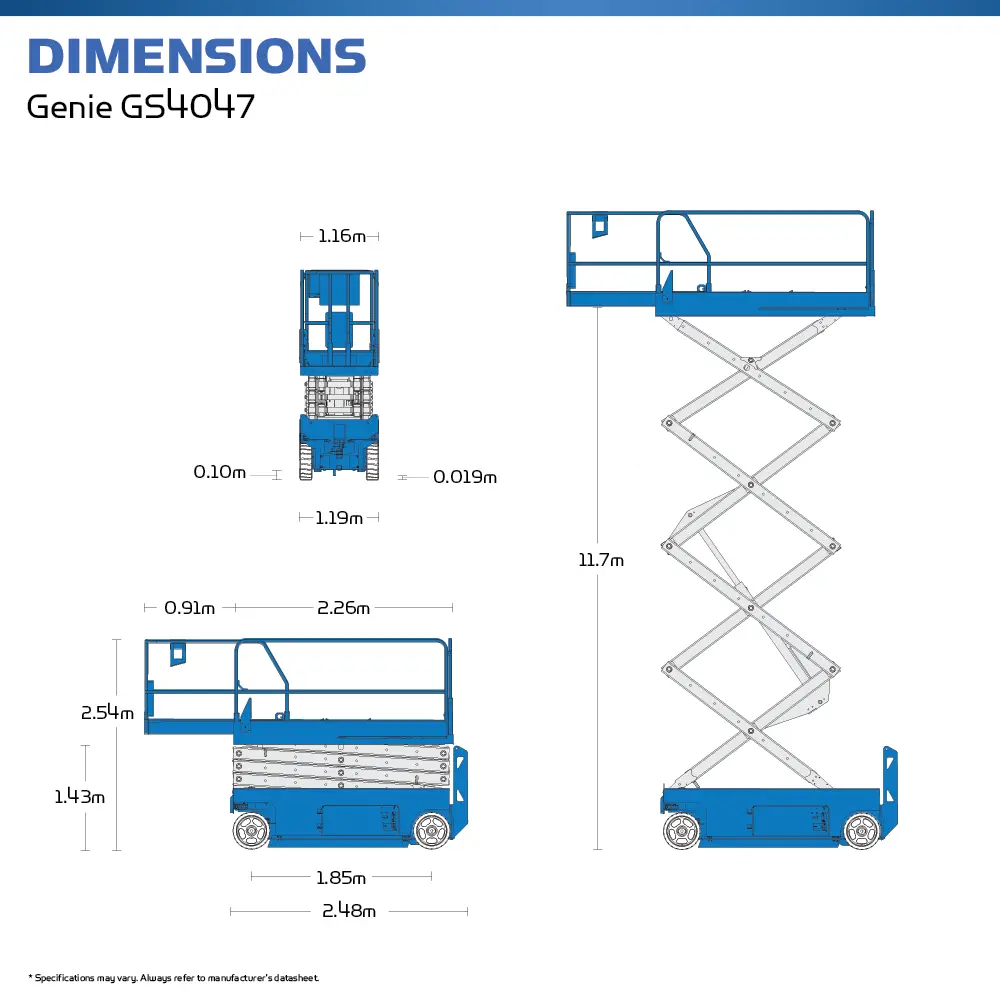

Machine Length
Machine Length
2.44m / 8ft 1in
Machine Width
Machine Width
1.19m / 3ft 11in
Machine Height
Machine Height
2.54m / 8ft 5in
Power Options
Power Options
Electric/Battery
Turning Radius
Turning Radius
Zero
Gradeability
Gradeability
25%

Interested in hiring a Genie GS4047?

ENQUIRE arrow icon Phone 0800 865 4455 Download Specification Download Specification
Overview Key Features Accessories Ideal Applications Resources

Genie GS4047 Electric Scissor Lift

The Genie GS4047 Scissor Lift is designed to meet the demands of high rise indoor spaces, reaching the unit’s maximum working height of 13.75m in just 70 seconds. A new 24V 300 AH battery pack offers more power and enables the user to operate for a full eight-hour work shift without needing to recharge. This machine is ideal for warehouse and factory operations which may require maintenance or repairs. It also has a narrow width of 1.19m which is useful for aisle or corridor work.

Key Features of the Genie GS4047

  • Folding rails with full height swing gate
  • Smart Link™ control system (joystick, 2 lift speeds & 2 selectable proportional drive speeds, user-friendly diagnostics)
  • Rear recessed charger receptacle
  • Platform control with battery charge indicator
  • On-board diagnostic system
  • AC power to platform
  • Lanyard attachment points
  • Manual platform lowering valve
  • Emergency stop at both platform and ground controls
  • Rear wheel multiple disc brakes
  • Front wheel hydraulic dynamic braking
  • Manual hydraulic brake release
  • Swing-out component trays
  • Pothole guards
  • Tilt level sensor with audible alarm
  • Descent alarm
  • Flashing LED beacons
  • Electronic horn
  • Telematics-Ready Connector
  • 24V DC battery pack
  • Universal 20 amp smart charger

Recommended training course for this platform: IPAF Category: Mobile Vertical (3a)

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Scissor Lifts here.

  • Narrow or difficult spaces
  • Warehouse operations
  • Stocktaking
  • Mechanical/electrical installation

The Genie GS4047 can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Ground Guards

Ground Guards
Small Scissor Pipe Racks

Small Scissor Pipe Racks
Telematics

Telematics
Tool Tethers

Tool Tethers
Transformer & Lead

Transformer & Lead

The Genie GS4047 comes equipped with various features designed to enhance your efficiency and performance on the job.

Electric Powered

Electric Powered
Non-Marking Tyres

Non-Marking Tyres
Power to Platform

Power to Platform
Small Scissor Single Deck Extension

Small Scissor Single Deck Extension
