Almac BIBI 1090-BL EVO

Specification

Make

Almac

Model

1090 BL EVO

Working Height

10m / 32ft 10in

Platform Height

8m / 26ft 3in

Min Weight

2,890.00kg / 6,387lbs

Safe Working Load

300.00kg / 663lbs

Machine Length

2.27m / 7ft 6in

Machine Width

1.46m / 4ft 10in

Machine Height

2.05m / 6ft 9in

Power Options

Diesel

Gradeability

25%

Interested in hiring a Almac BIBI 1090-BL EVO?

ENQUIRE

0800 865 4455

Download Specification

Overview Key Features Accessories Ideal Applications Resources

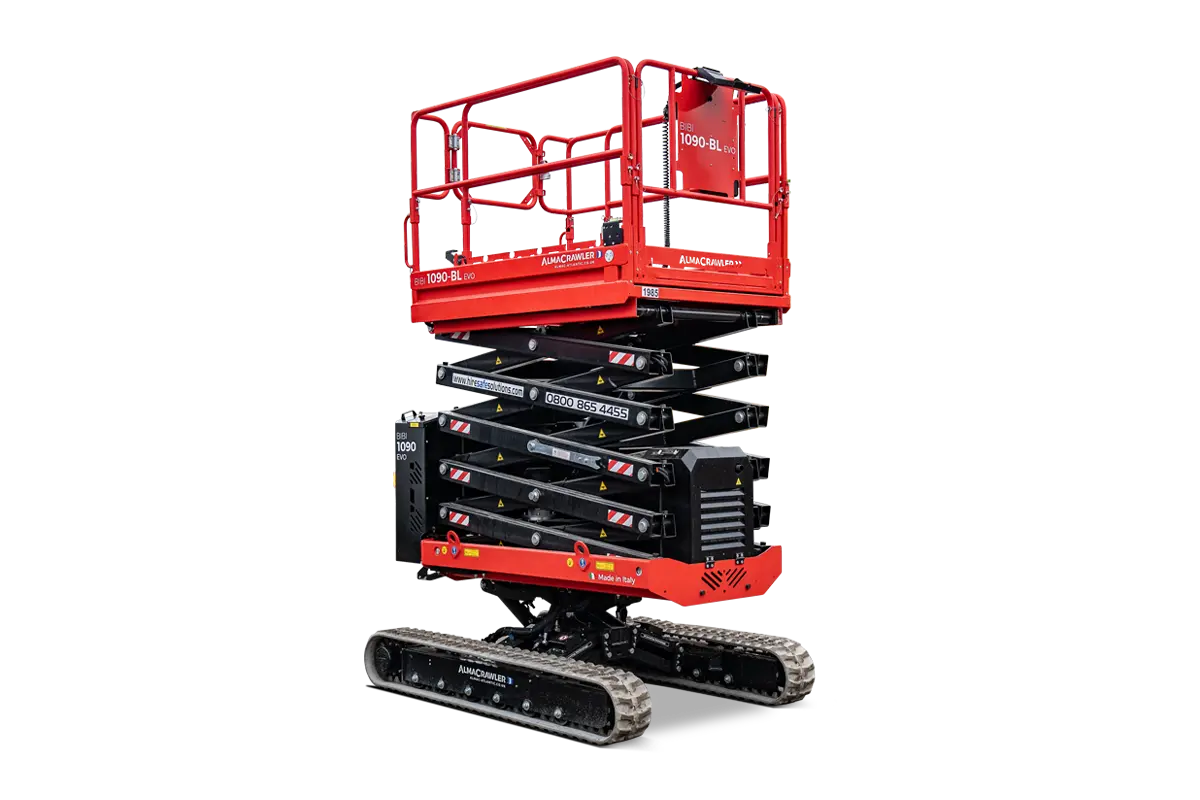

Almac BIBI 1090-BL EVO Diesel Extreme Terrain Vehicle

The Almac BIBI 1090-BL EVO is capable of levelling on longitudinal slopes of +/-20° and lateral slops of +/-14°. The deck and scissor pack remain level when tracking over uneven ground and the machine can even be driven when elevated to 7m, with a maximum working height of 10m and a SWL of 300kg. The unique bi-fuel system also allows the machine to be operated on fume-less battery power indoors and diesel outdoors.

Key Features of the Almac BIBI 1090-BL EVO

Absolute simplicity and safety of use even in conditions of steep slope or rough terrain
Safe Working Load Capacity of 300kg
1.12m extension deck
Bi-levelling scissor equipped with a KUBOTA diesel engine for operations up to 9.9m height
Relying on Almac will give you efficient tracked lift, able to simplify your work operations, even in special situations
Ability to operate in small spaces
The automatic levelling system of the vehicle works up to a height of 6.9m while in motion, with a controlled speed of 0.31mph allowing the platform to always stays level during movement hence keeping the basket level

Available to hire, lease or buy from Hire Safe Solutions in the UK & ROI.

Call us on 0800 865 4455 for more information

Or, fill out an enquiry form here and we will get back to you as soon as possible.

Looking for something else?

Discover our entire range of Extreme Terrain Vehicles here.

The Almac BIBI 1090-BL EVO can be fitted-out with an assortment of accessories to increase productivity and safety on site.

Telematics
Telematics can be added to your machine and act as an additional layer of security. Not only do they provide real-time monitoring, but they also help to prevent unauthorised use, limiting access to either IPAF-trained personnel only; or specific individuals with a unique pin code. Geo-Fencing can also be setup, further strengthening site security by ensuring the machine can only be operated in a pre-defined area.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Tool Tethers
When working with powered access, there is a risk of dropping tools out of the platform, which if working high enough, could prove fatal. Tool tethers offer a safe and effective way of preventing this and can be easily secured to a wristband, harness or fixed anchoring point on the platform.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Small Scissor Pipe Racks
For applications where materials such as pipes, conduit and cladding need to be lifted, pipe racks can be fitted to the machine; providing a safe alternative to balancing the materials on the handrails, which could potentially cause serious injury if they were to fall.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Nappies
Benefit from added peace of mind when working on sensitive flooring by adding a machine nappy onto your hire. Made from a durable PVC, they are available for most of our fleet and help to minimise risk of hydraulic spillages in the event of a leak.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Chalwyn Valves
Typically used in Petrochemical plants and areas where petrol and other flammable materials are present, Chalwyn valves provide emergency overspeed shutdown protection for diesel engines and are the most effective way of preventing runaway situations. They work by blocking the engine's air intake system, cutting off an uncontrolled external fuel source and the air required to keep the engine running.

When operating diesel engines in Petrochemical plants and other hazardous environments such as petrol station forecourts, a sudden release of flammable gas or hydrocarbon vapour can happen at any time and be instantly drawn into the engine's air intake. This external fuel source would prevent the machine from shutting off, meaning the engine would continue to accelerate rapidly. Chalwyn Valves are the most effective way of preventing these runaway situations, providing emergency overspeed shutdown protection by blocking the engine's air intake system, cutting off the uncontrolled external fuel source and the air required to keep the engine running.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com
Spark Arrestors
Spark Arrestors can be fitted to the exhaust system of most diesel engines and prevent the emission of sparks when working in potentially flammable or explosive environments.

For more information or to add this accessory to your hire, get in contact with us today

Call: 0800 865 4455

Email: info@hiresafesolutions.com

The Almac BIBI 1090-BL EVO comes equipped with various features designed to enhance your efficiency and performance on the job.

Diesel Powered
Benefit from uninterrupted work cycles thanks to a powerful yet efficient diesel engine, capable of tackling challenging terrains with ease.

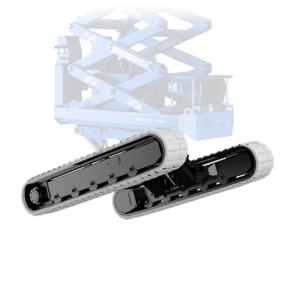

Non-Marking Tracks – SL
With non-marking rubber tracks, you’re better equipped for any challenge around the job site. Non-marking rubber tracks provide exceptional terrainability on uneven and soft ground, and prevent black marks from appearing when you use your machine on more sensitive or light-coloured floors like concrete slabs.
Small Scissor Single Deck Extension
Benefit from an increased platform working area thanks to this machine's robust slide out deck extension.

For accurate dimensions, always refer to the manufacturer's specification sheet.
Automatic Levelling
The Automatic Levelling System provides safe operation on various uneven surfaces.
Variable Undercarriage
Variable undercarriage for increased stabilisation without restrictions
